SIT 4

SIT 4 - The original

The ENT treatment and examination chair



Form and function

The 'SIT 4‘ ENT examination and treatment chair combines clean design with full functionality and ergonomics – the result of elaborated design and 15 years of continuous development. With its sophisticated features, it presents itself as a stylish multifunction chair.

High quality

High quality materials combined with precision workmanship and reinforced heavy-duty components ensure the durability of the SIT 4, even under the most demanding day-to-day conditions in hospitals and practices.


Optimal position

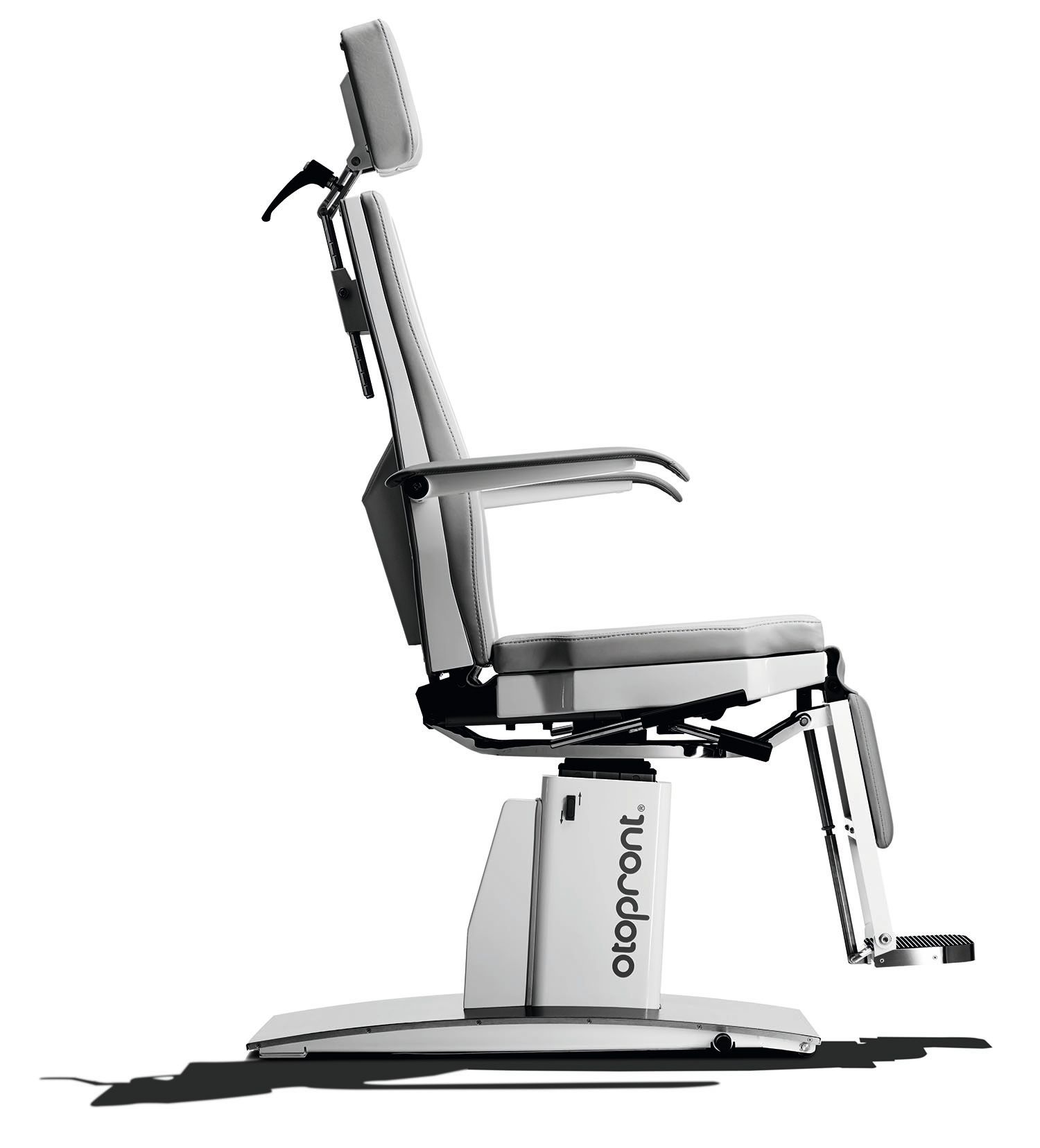

A special feature of the SIT 4 is the sloping telescopic column, as a result of which the patient is automatically brought towards the doctor when the chair is raised. This ensures even better access to the patient.

  • Triple telescopic cylinder and up to 11.81 inch seat height adjustment ease examination of children or and for work while standing


  • Height adjustment by integrated / external foot switch or remote controll

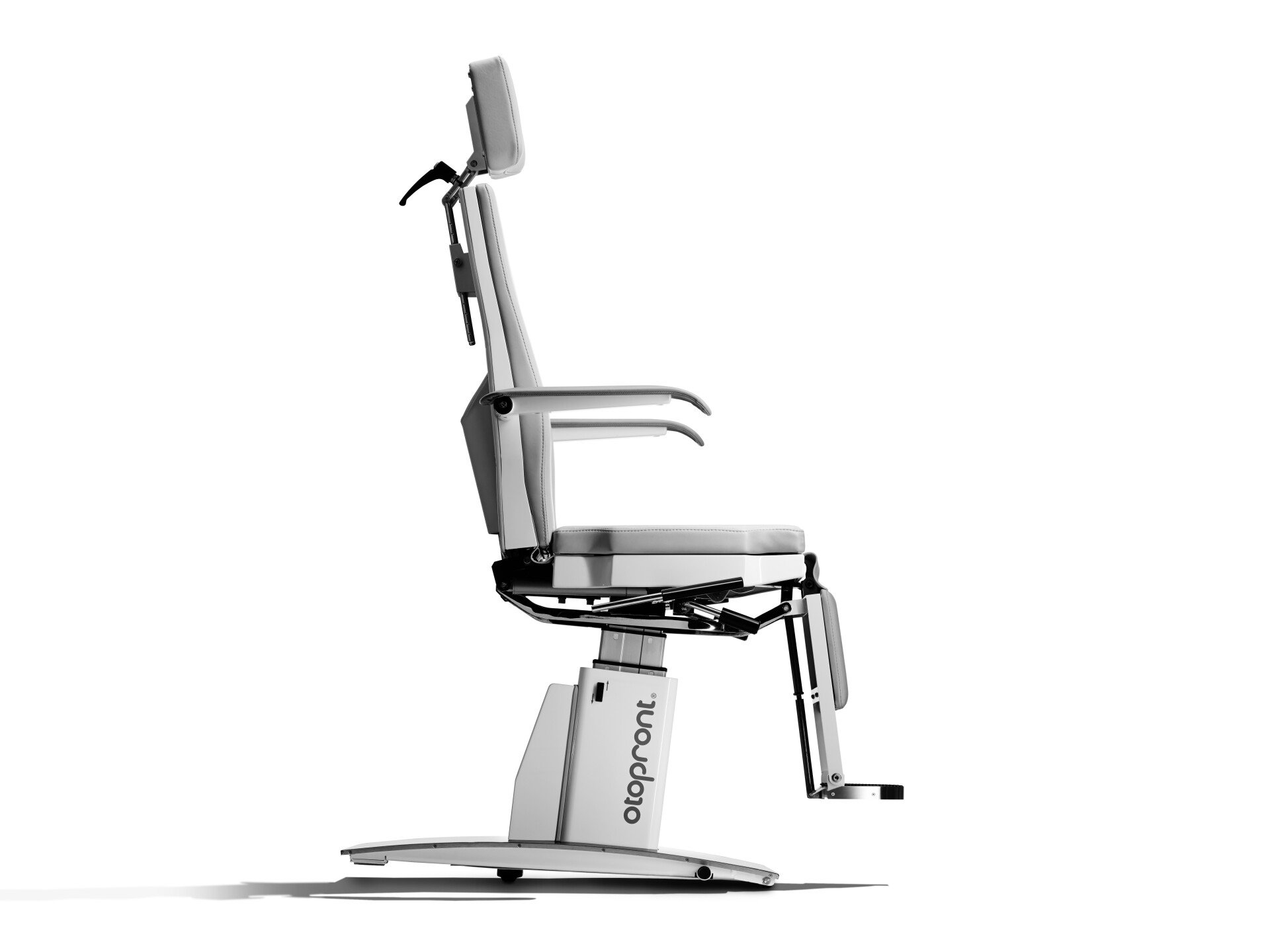

SIT  4 Seitenansicht

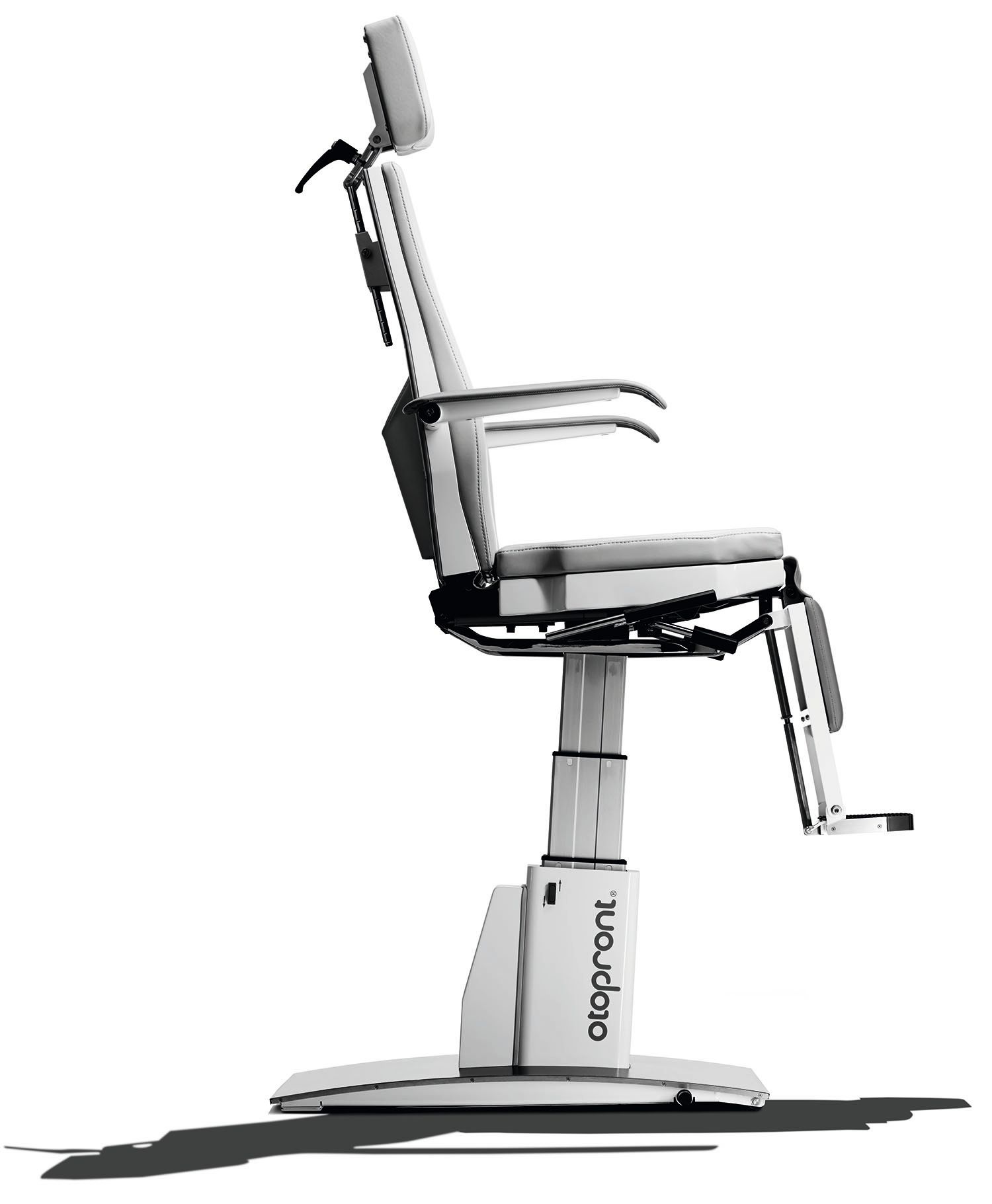

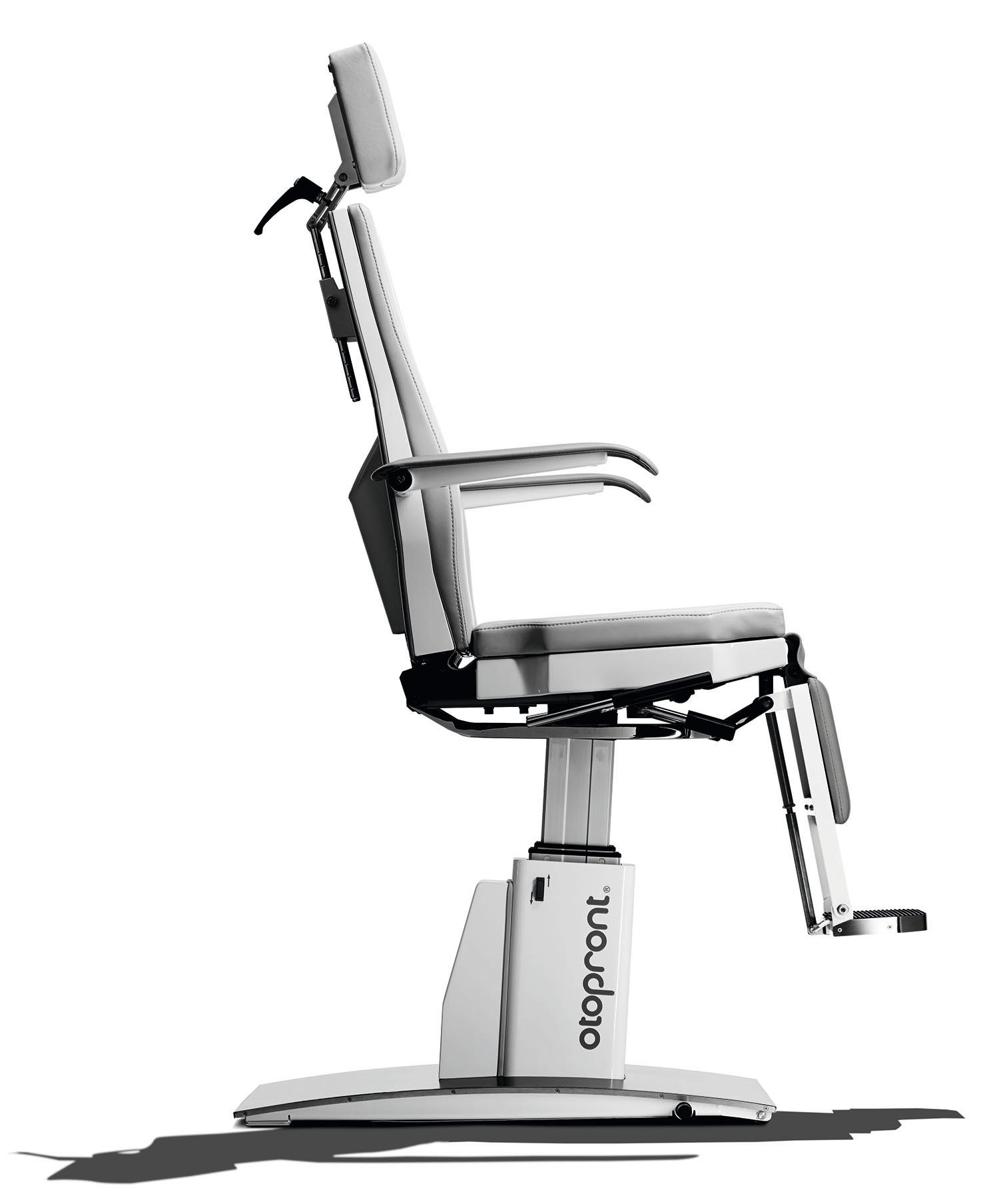

Comfort forward column for better access to the patient

Comfortable sitting and reclining position

  • The armrests and legrests follow simultaneously when the backrest of the SIT 4 is adjusted until a fully horizontal position is reached, providing perfect support and comfort to the patient


  • In case of a collapsing patient the backrest can quickly be brought into the -10° Trendelenburg position
  • Simultaneous footrest can be folded up separately, ensuring safe contact with the calves on the chair
SIT  4 Seitenansicht

Backrest in -10° pretilt

Synchronous motion

-10° Trendelenburg position

Swivel function

The SIT 4 is smoothly rotatable by 360°, equipped with a 90° detent and a locking brake, allowing quick and precise adjusting of each position. Optionally the rotation can be operated by an electric motor (by foot pedal or remote control) up to 180° clockwise or counterclockwise.

The version with an independent seat swivel with 90° detents enables rapid changes of the patient‘s position and better access to the patient‘s ear.

SIT  4 Seitenansicht

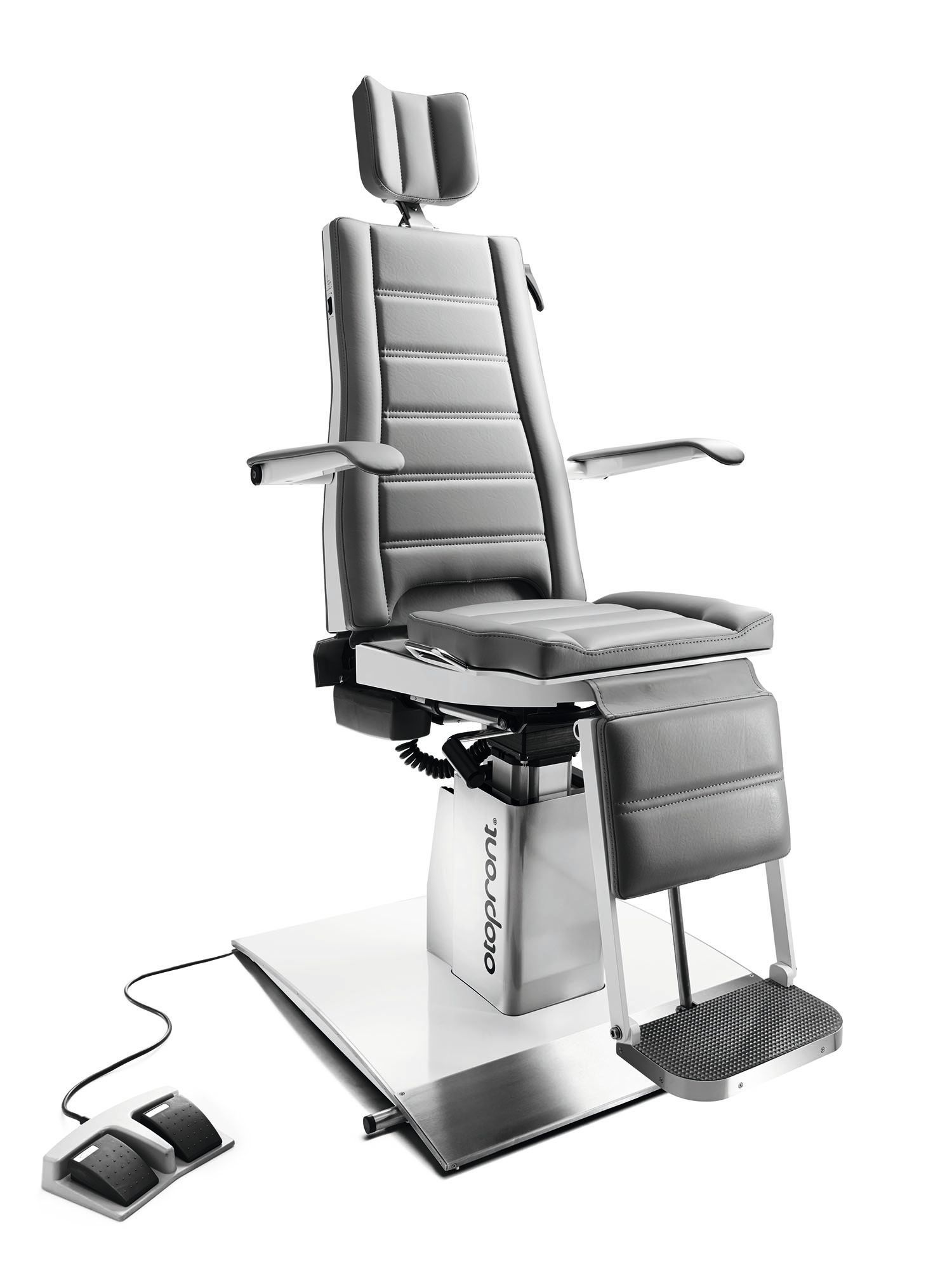

Starting position

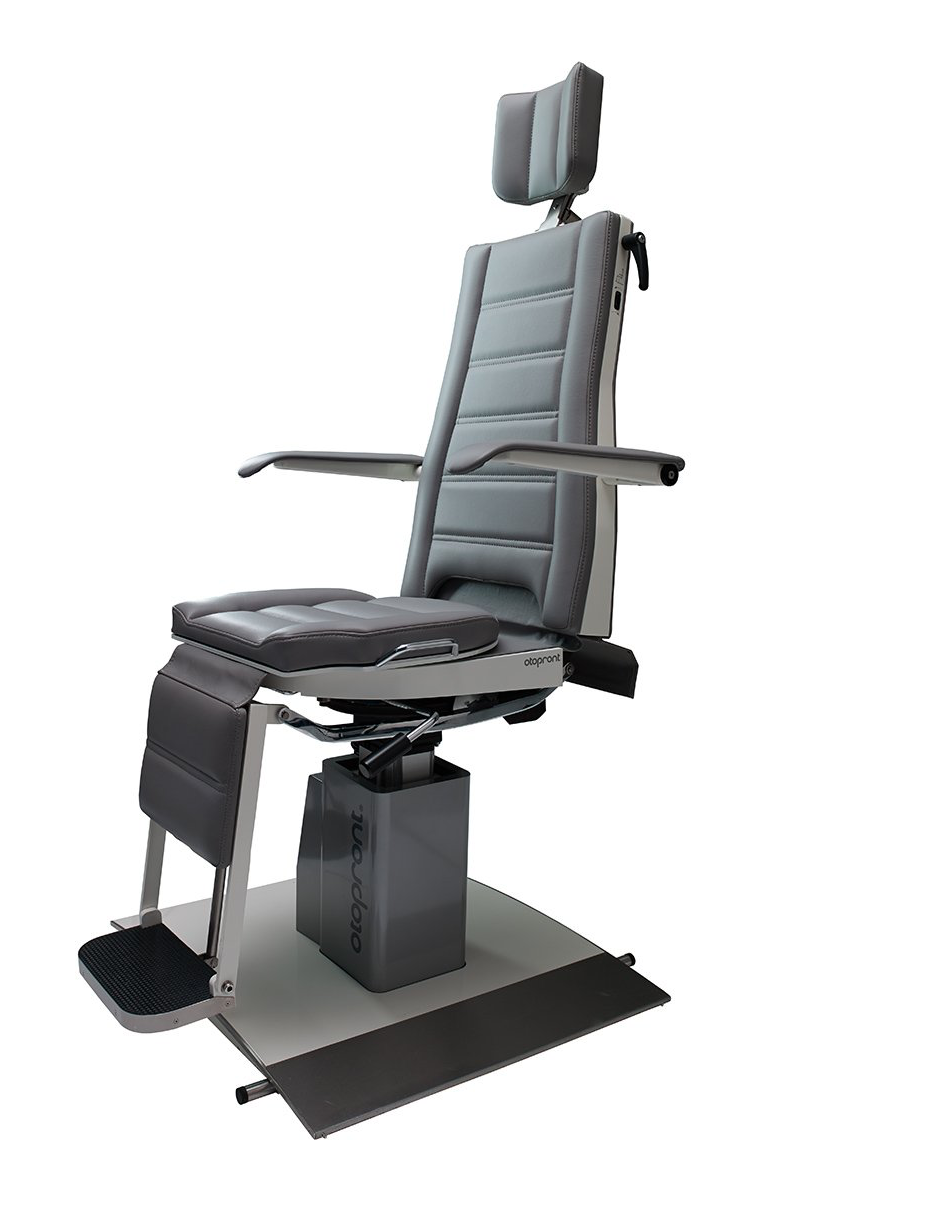

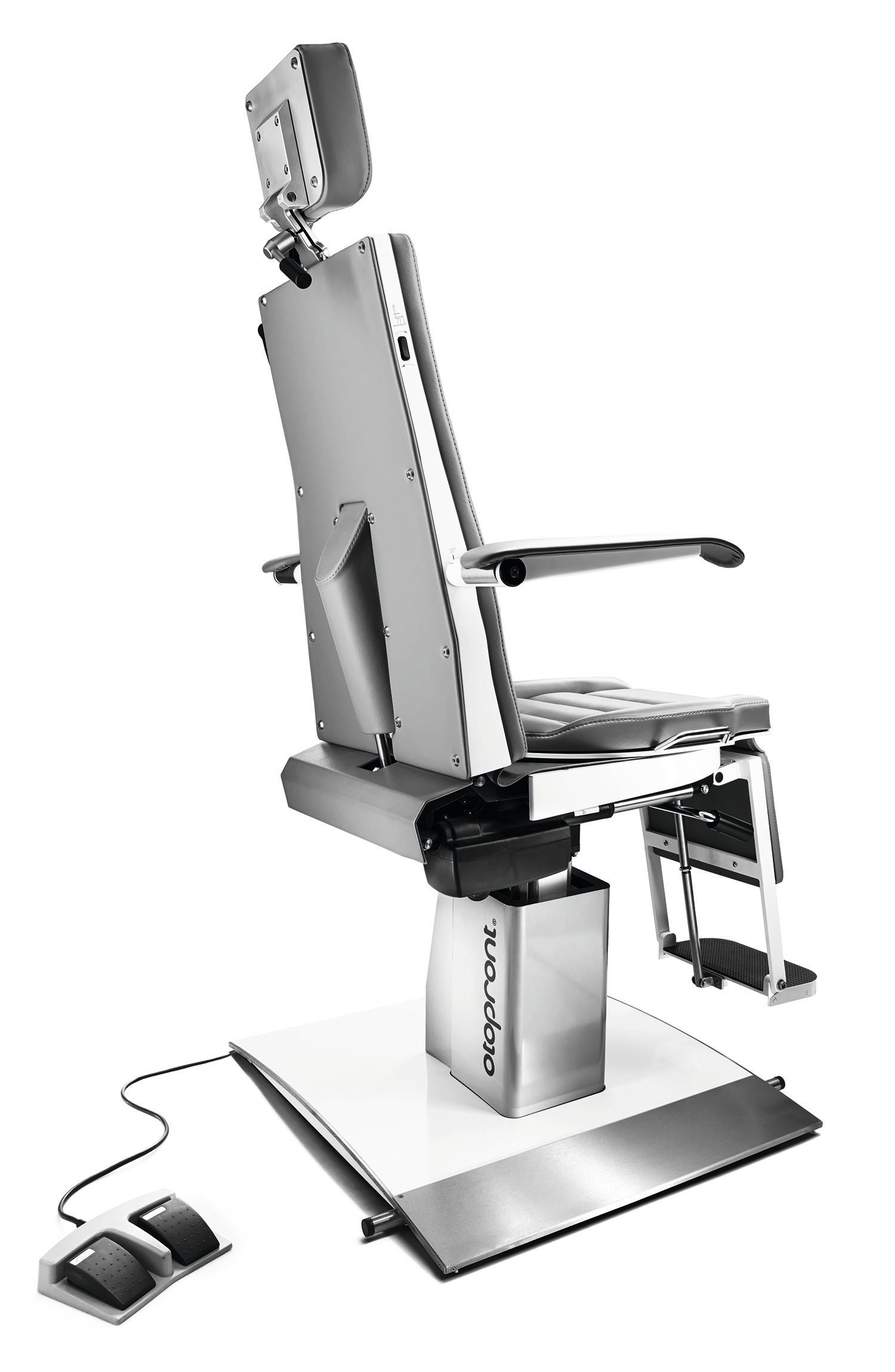

90° anticlockwise rotation

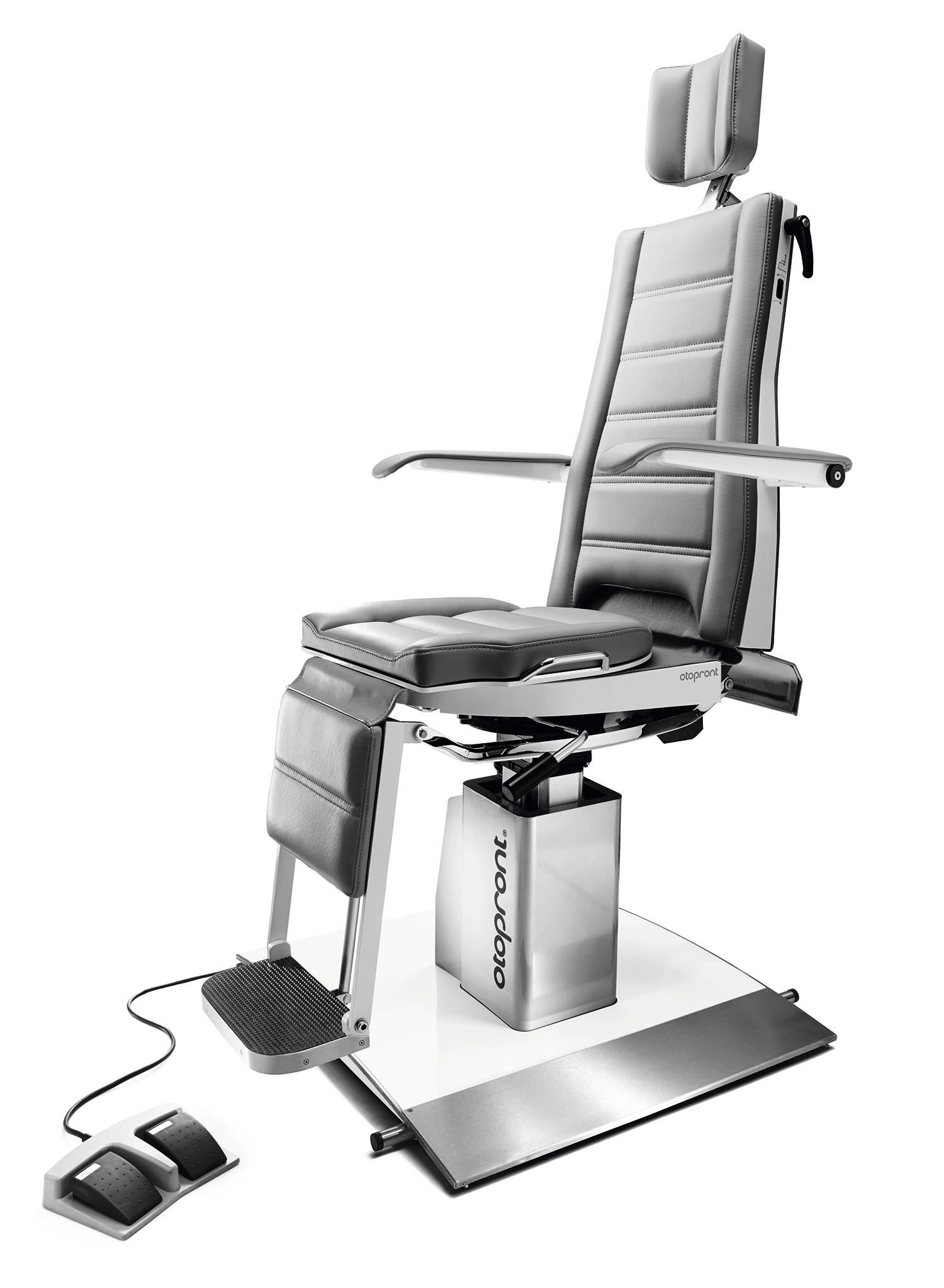

90° clockwise rotation

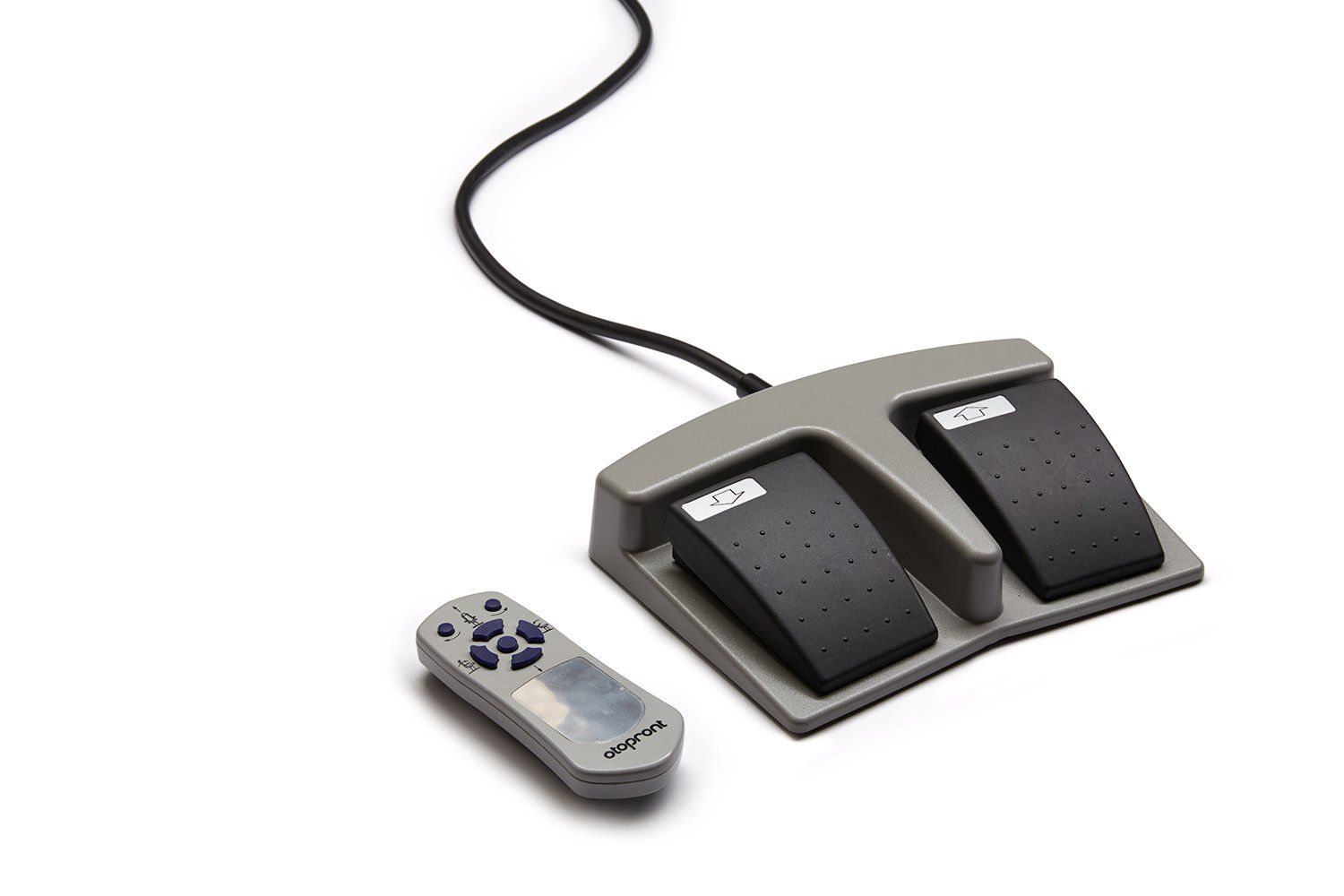

Choice of separate foot switch or remote control


Mobile mode

The SIT 4 offers you a choice of two headrests. The basic headrest allows swift height adjustment via vertical displacement, with automatic locking.


The alternative surgical headrest with three degrees of freedom can additionally be adjusted in its tilt and horizontal position, which makes it particularly suitable for larynx examinations or minor interventions.

Castors for moving the chair smoothly across the floor

SIT  4 Seitenansicht

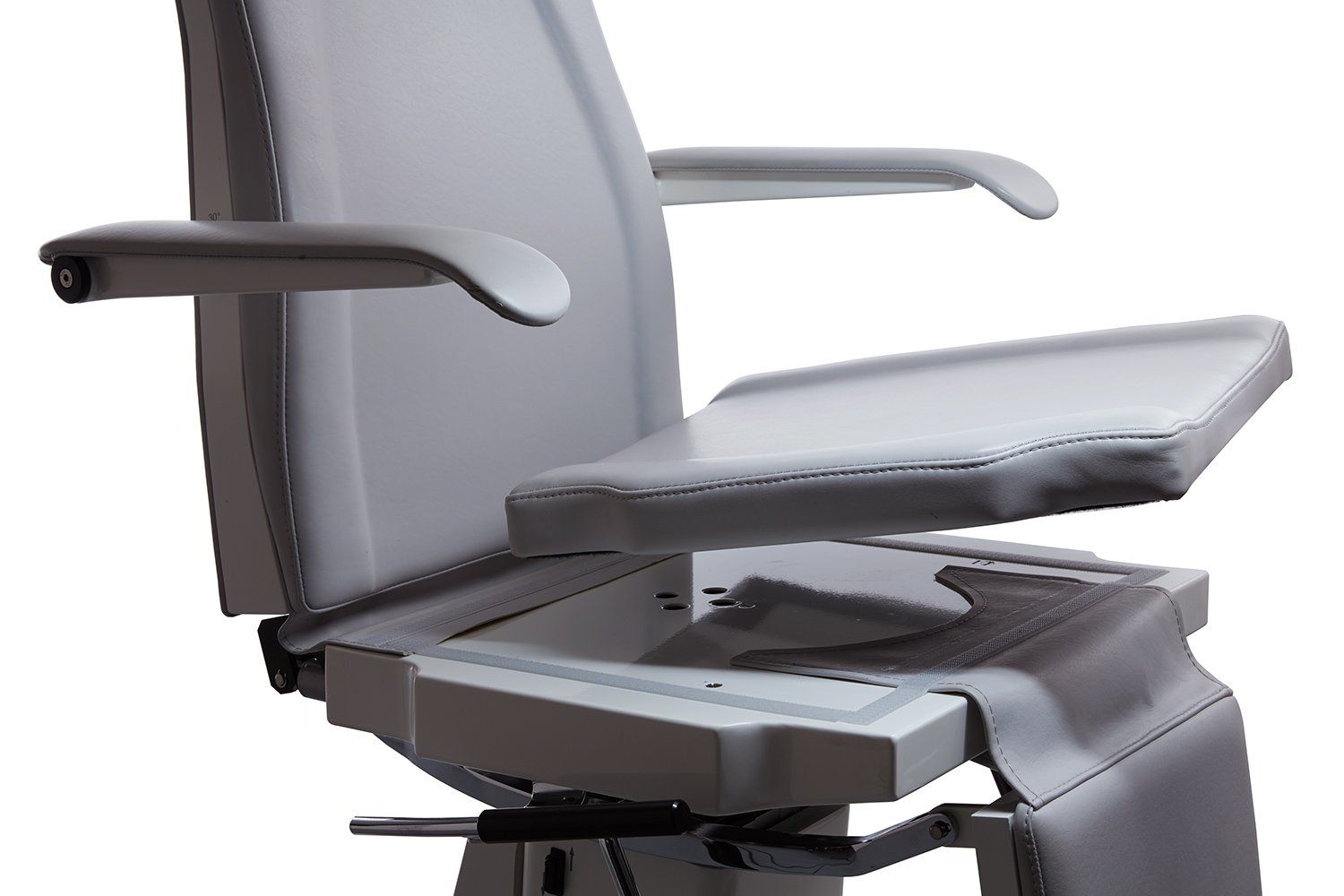

Removable seat cushion with Velcro® fastenings (all models)

The seat cushion can be removed for easy cleaning with the help of Velcro fastenings. The footrest can also be easily detached to be cleaned in the dishwasher.

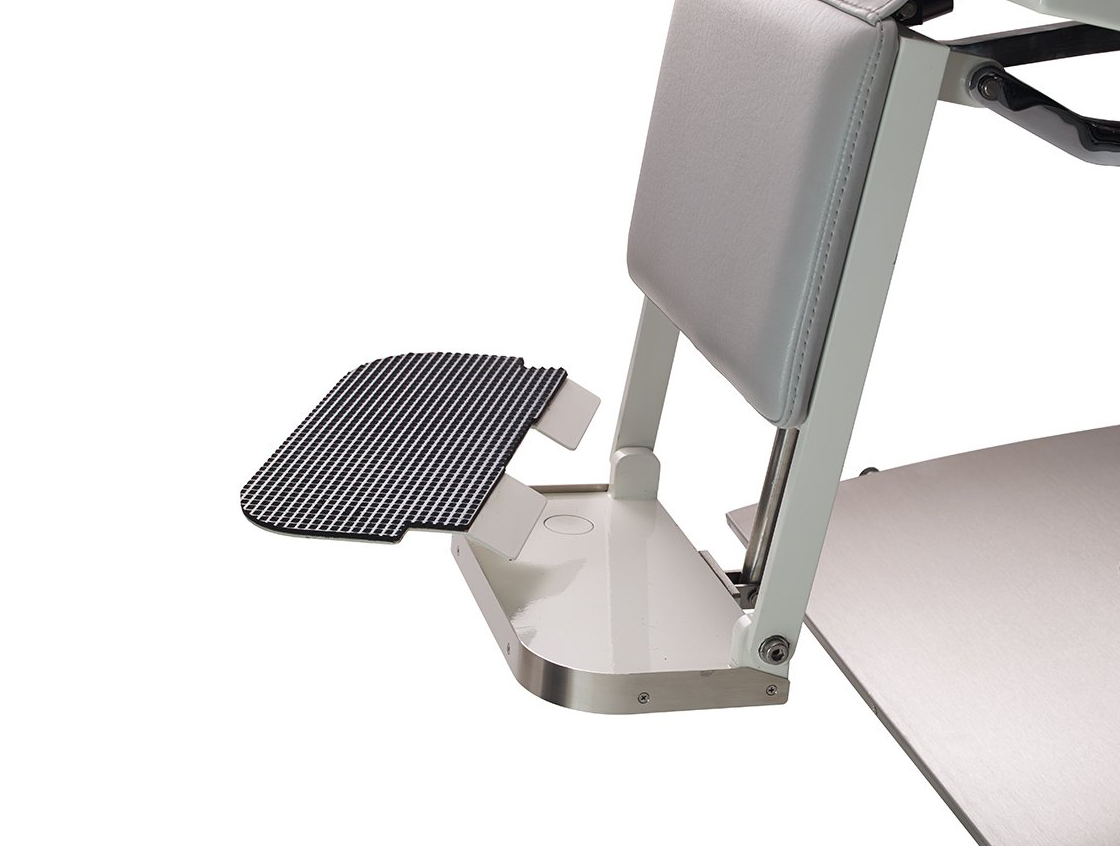

Removable, dishwasher-safe footrest


Headrests

The SIT 4 can be fitted with a mobility feature for the treatment of recumbent patients at the ENT workplace as well as for flexible deployment at different sites such as outpatient clinics or hospital wards.


Two castors lower from the bottom at the push of a button, enabling the SIT 4 to be pushed smoothly (only moveable when chair is empty and not anchored in the floor).

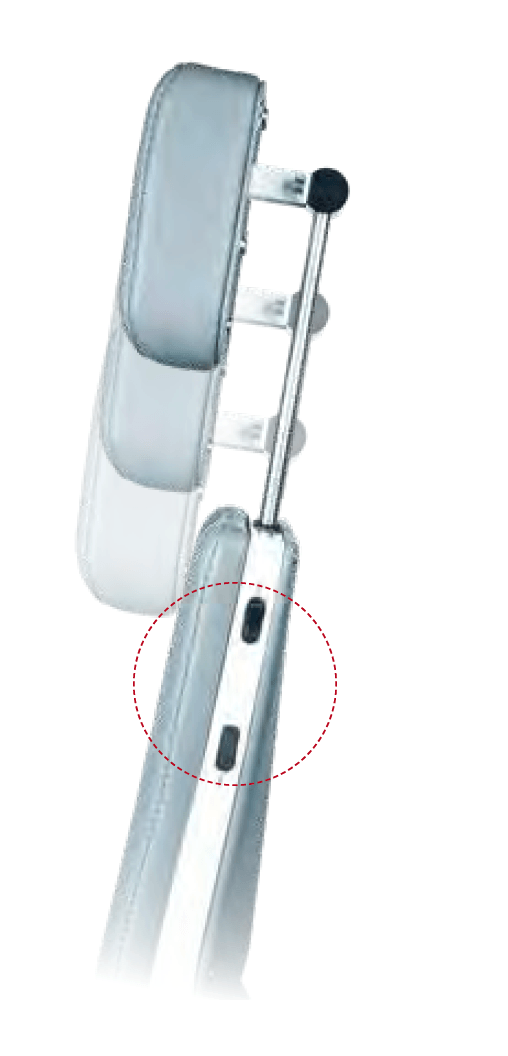

An optional power-operated height adjustment feature enables the position of the headrest to be conveniently modified even during treatment.

Possible for both the base and the surgical headrest.


SIT  4 Seitenansicht

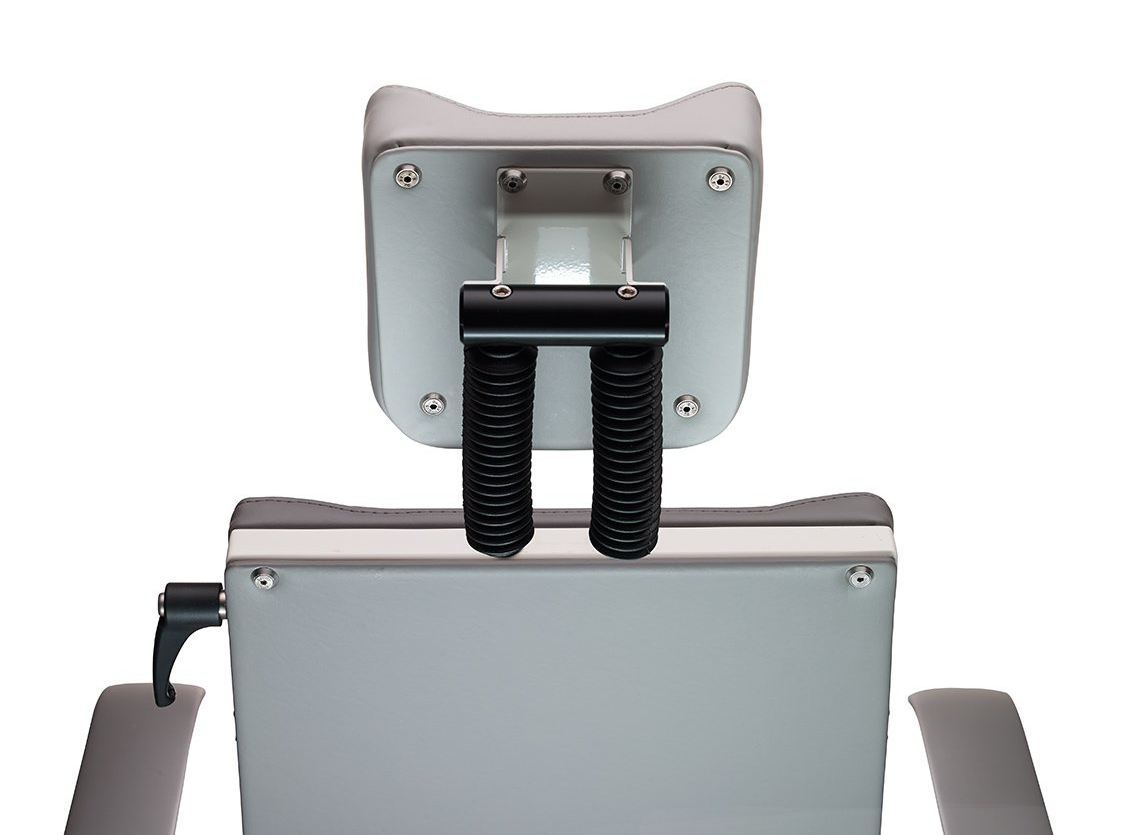

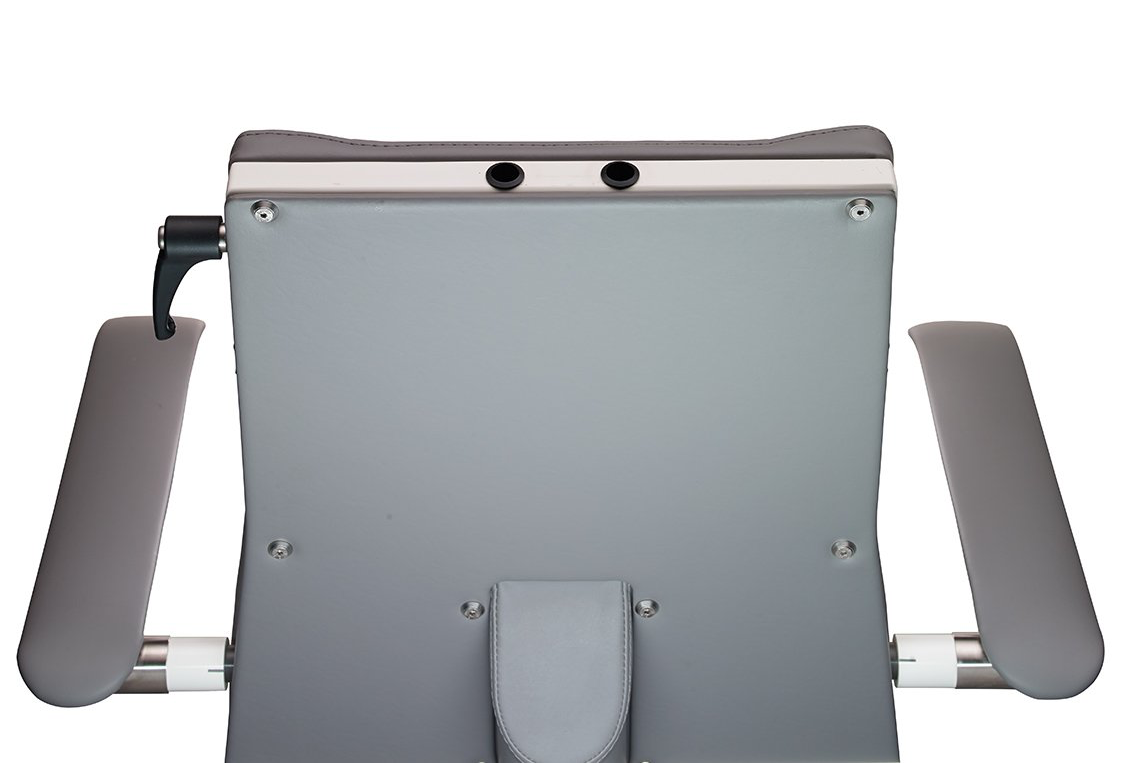

Basic headrest

Manual or power height adjustment

Power height adjustment

The headrests can easily be replaced or removed for cleaning

Surgical headrest

One lever, many position

SIT  4 Seitenansicht

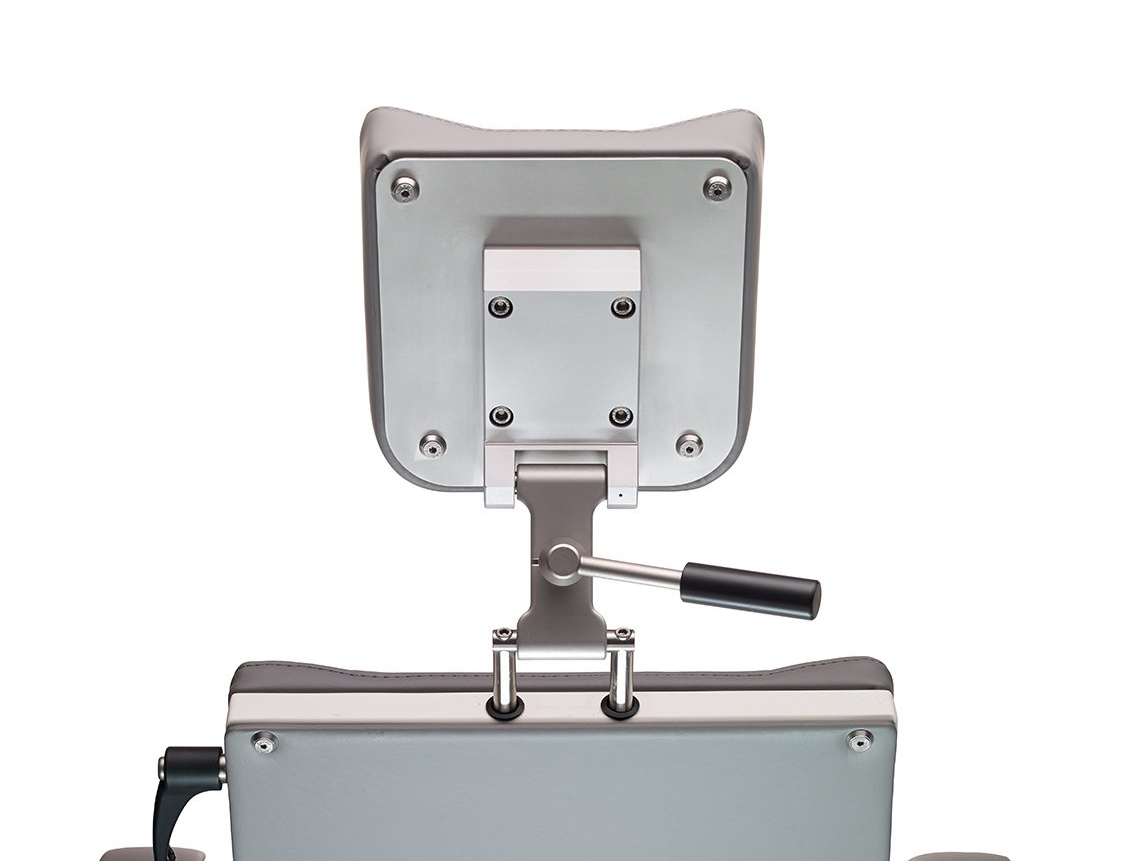

Surgical headrest

with 3 degrees of freedom


Materials and colors

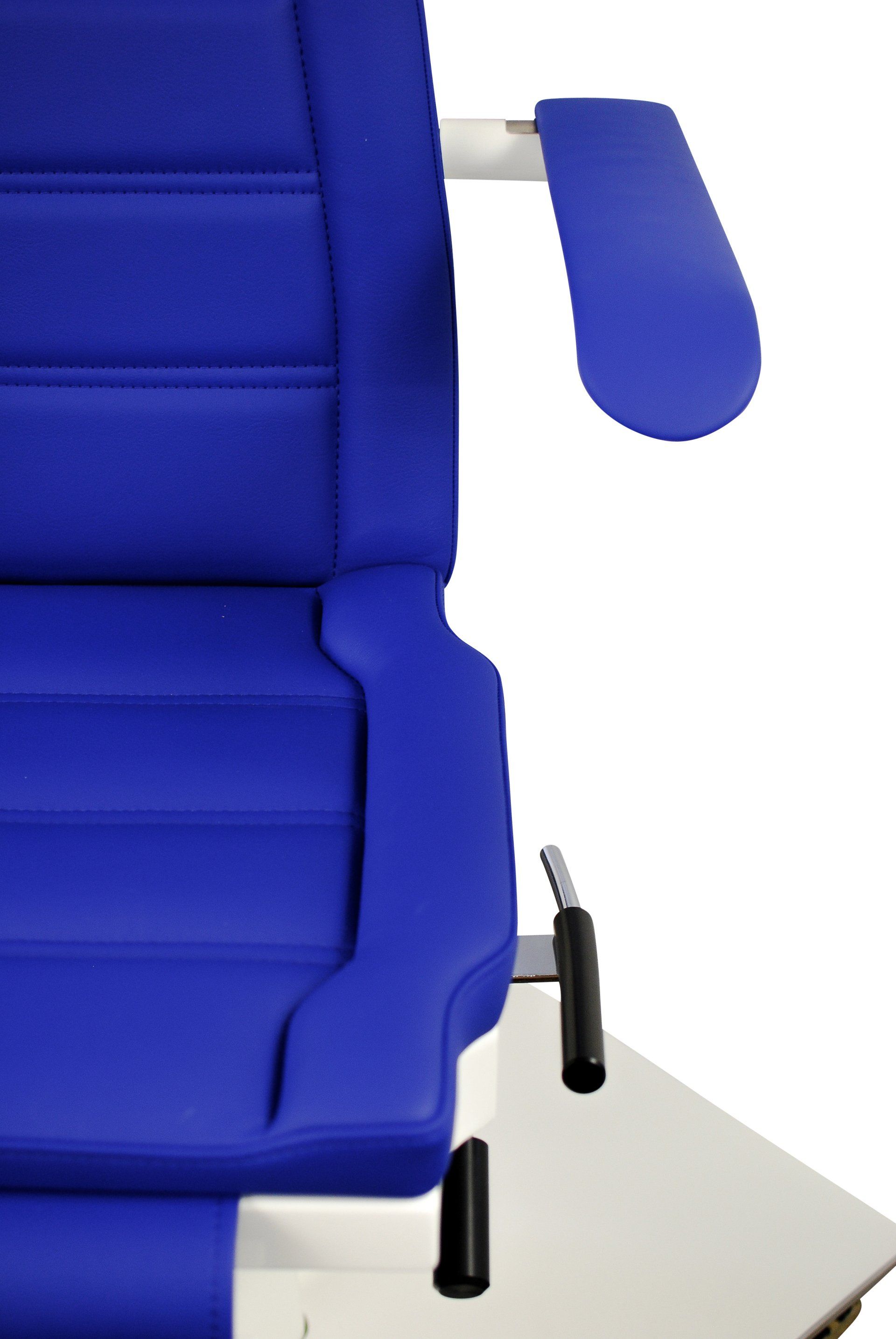

The upholstery of the SIT 4 is available with saddle-stitch seams or with a smooth surface. Both versions are extremely hard-wearing, easy to clean, and disinfectant-resistant. The synthetic leather upholstery is available in a wide range of RAL colors, optionally also available in genuine leather.

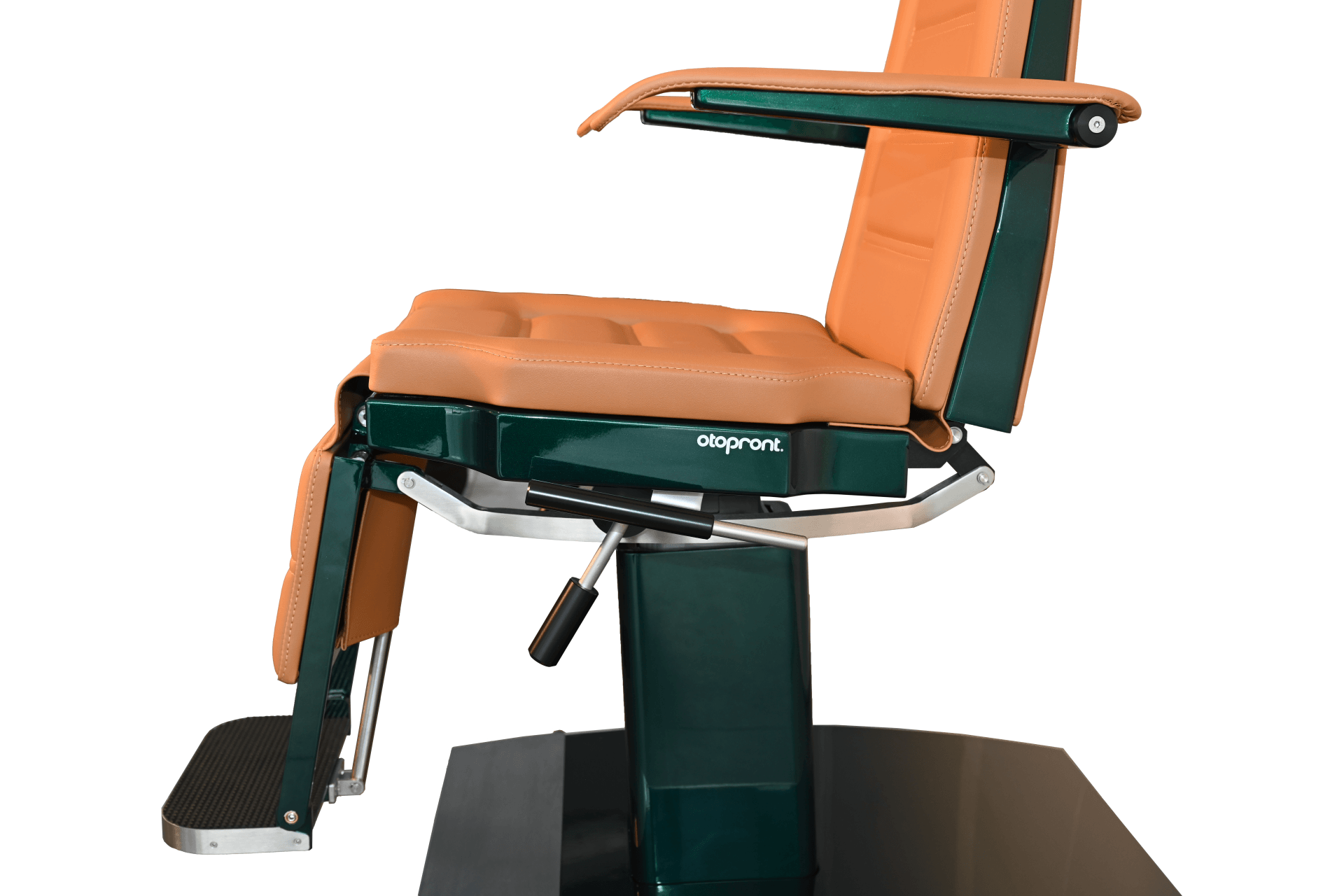

The full range of RAL and metallic colors is available for the chair’s lacquered components, with the option of selecting different colors for the upper section, central column and

base.

SIT  4 Seitenansicht

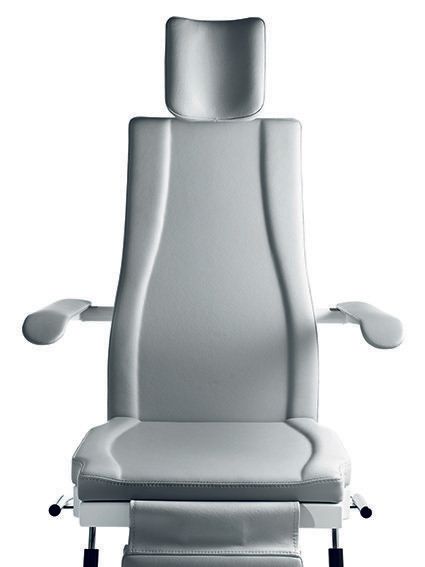

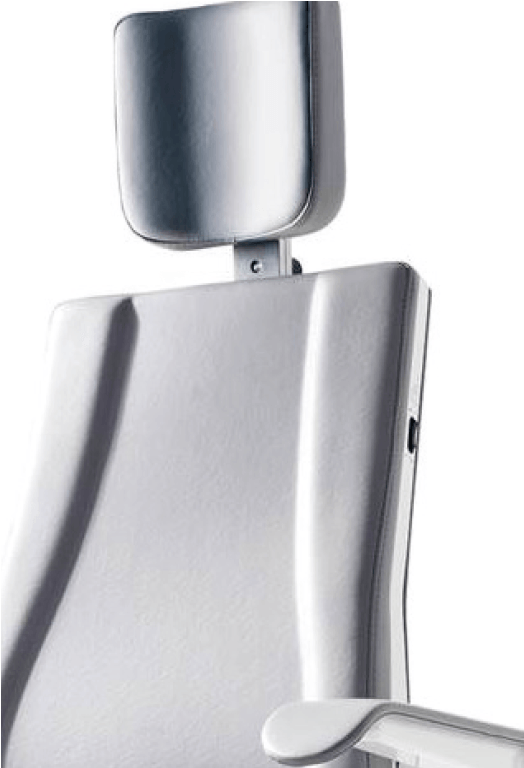

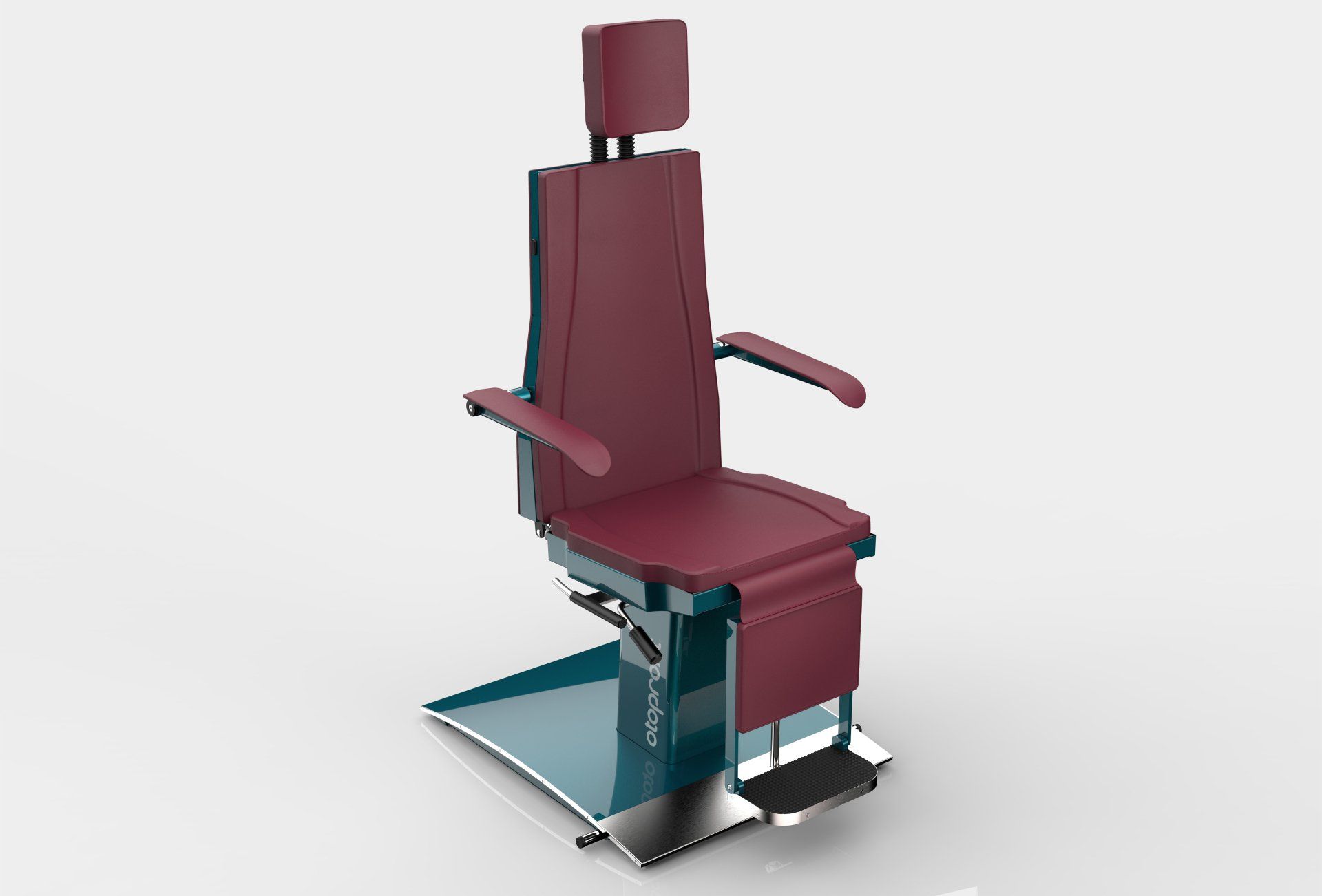

Smooth Leather

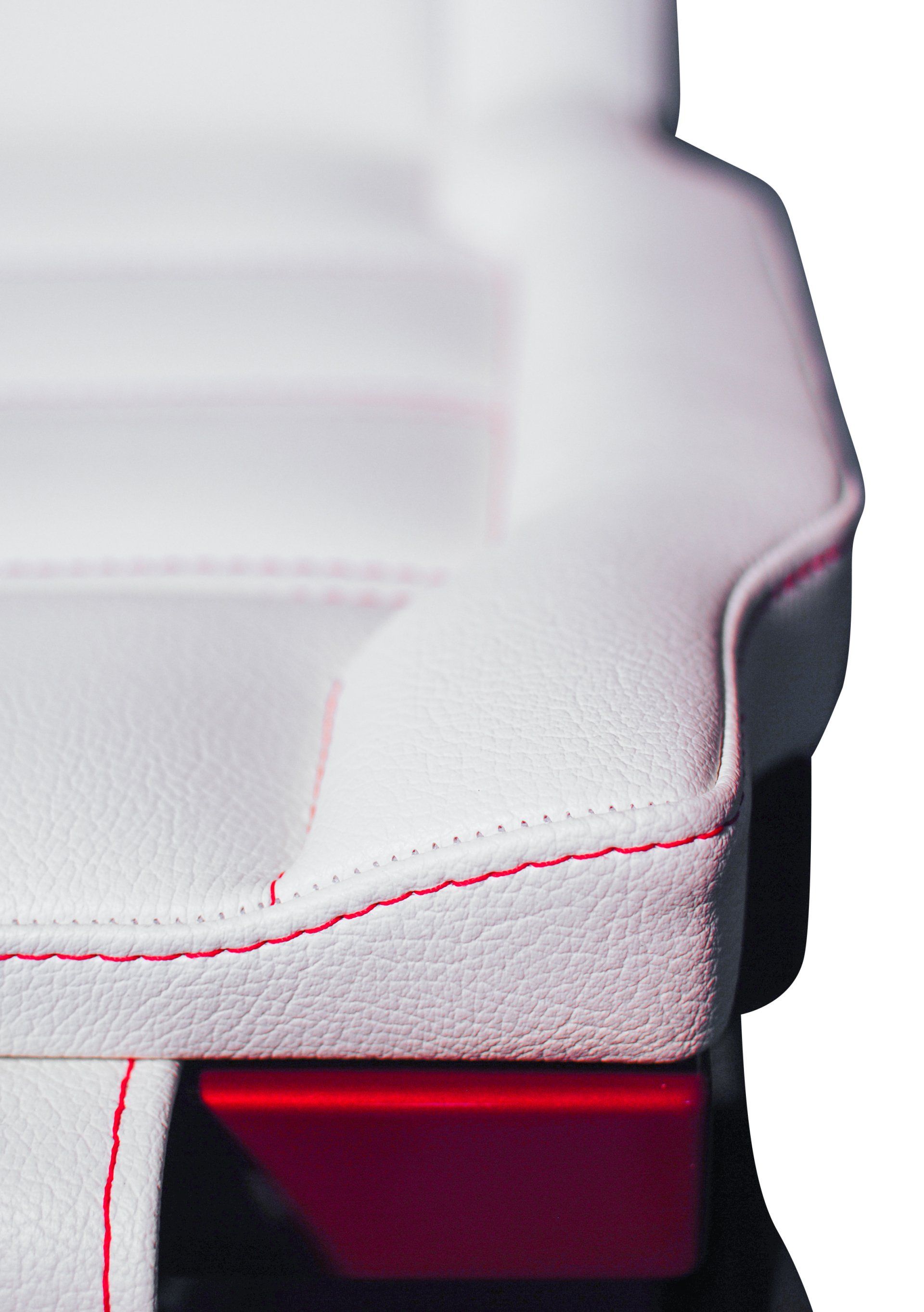

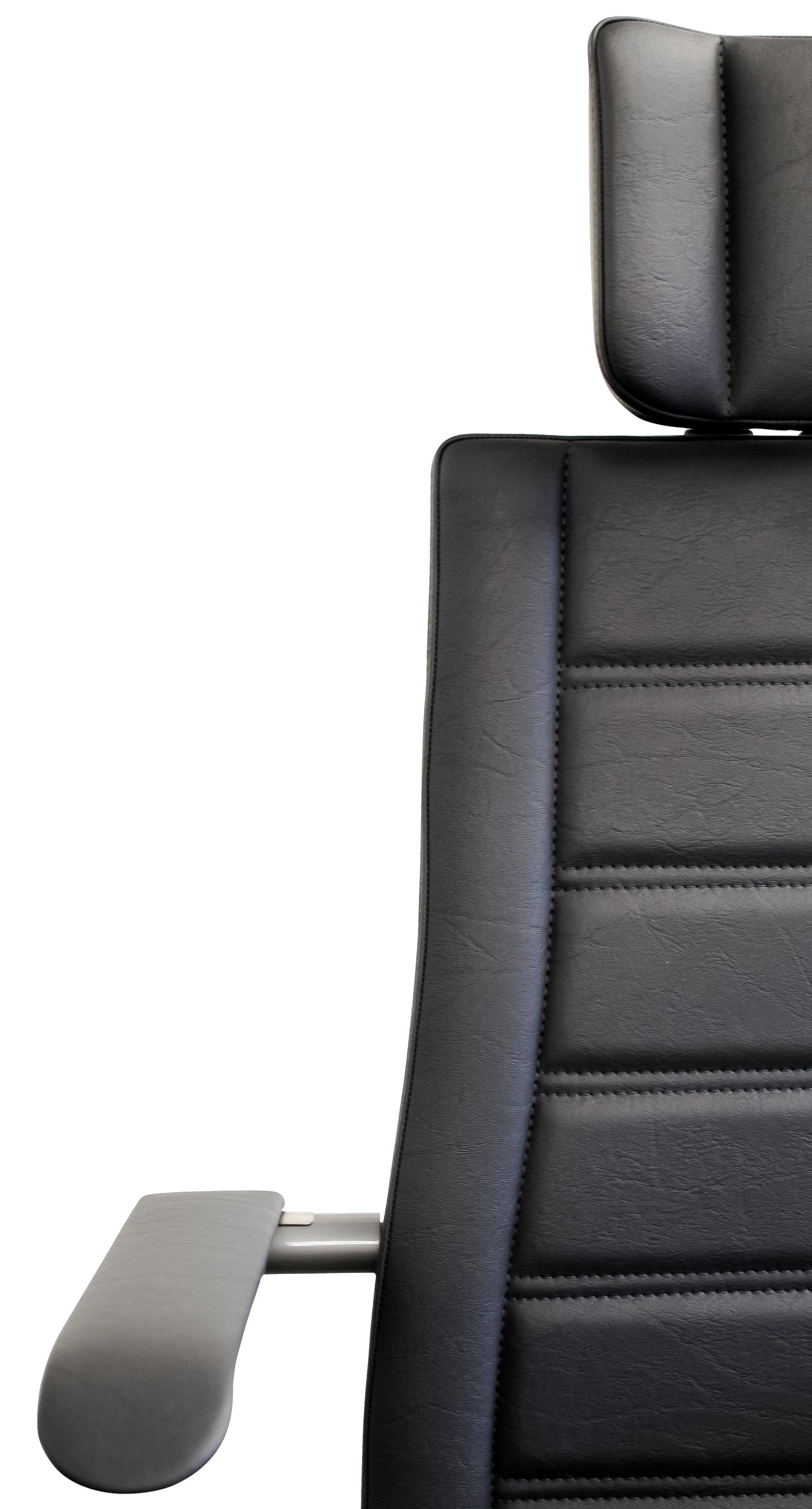

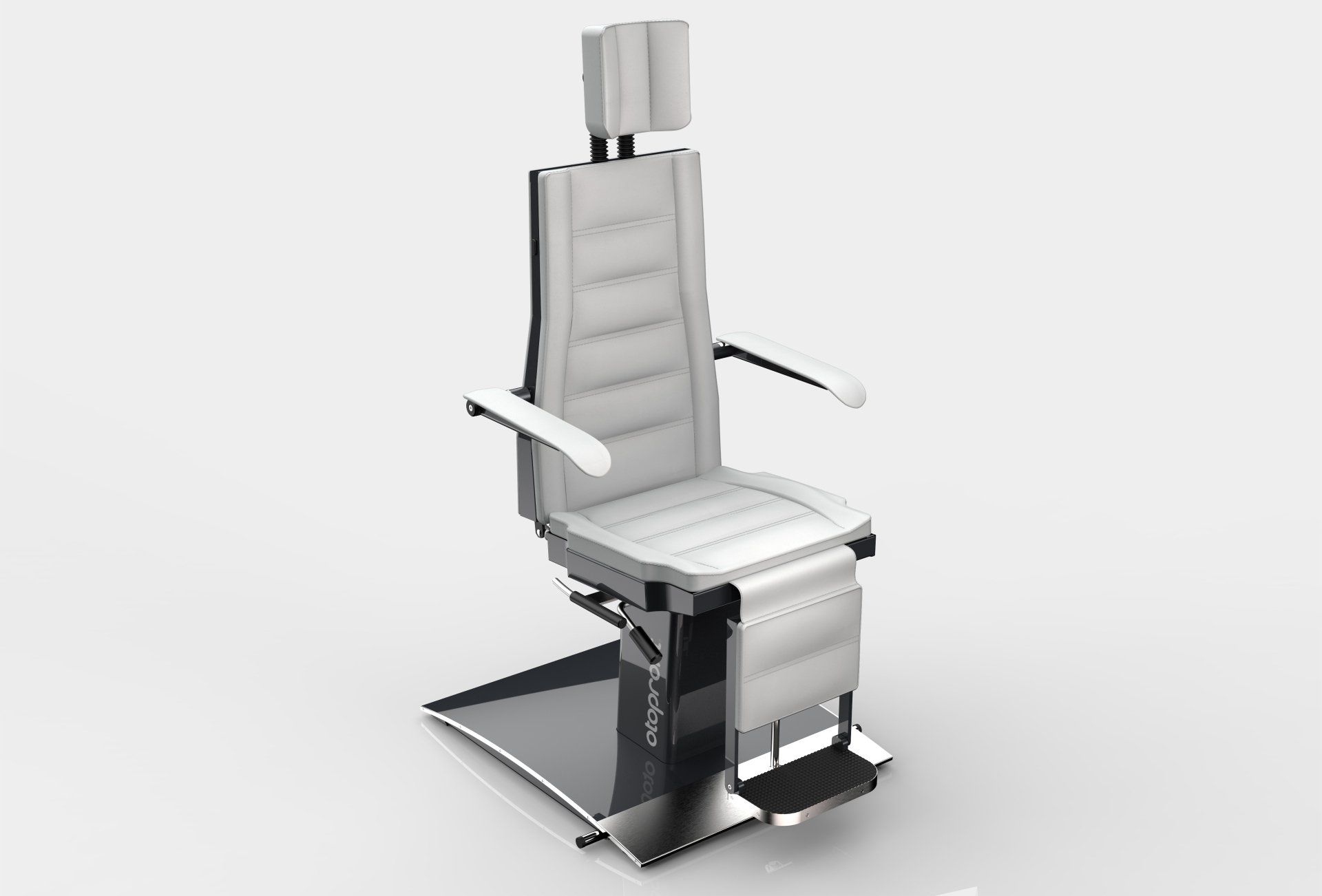

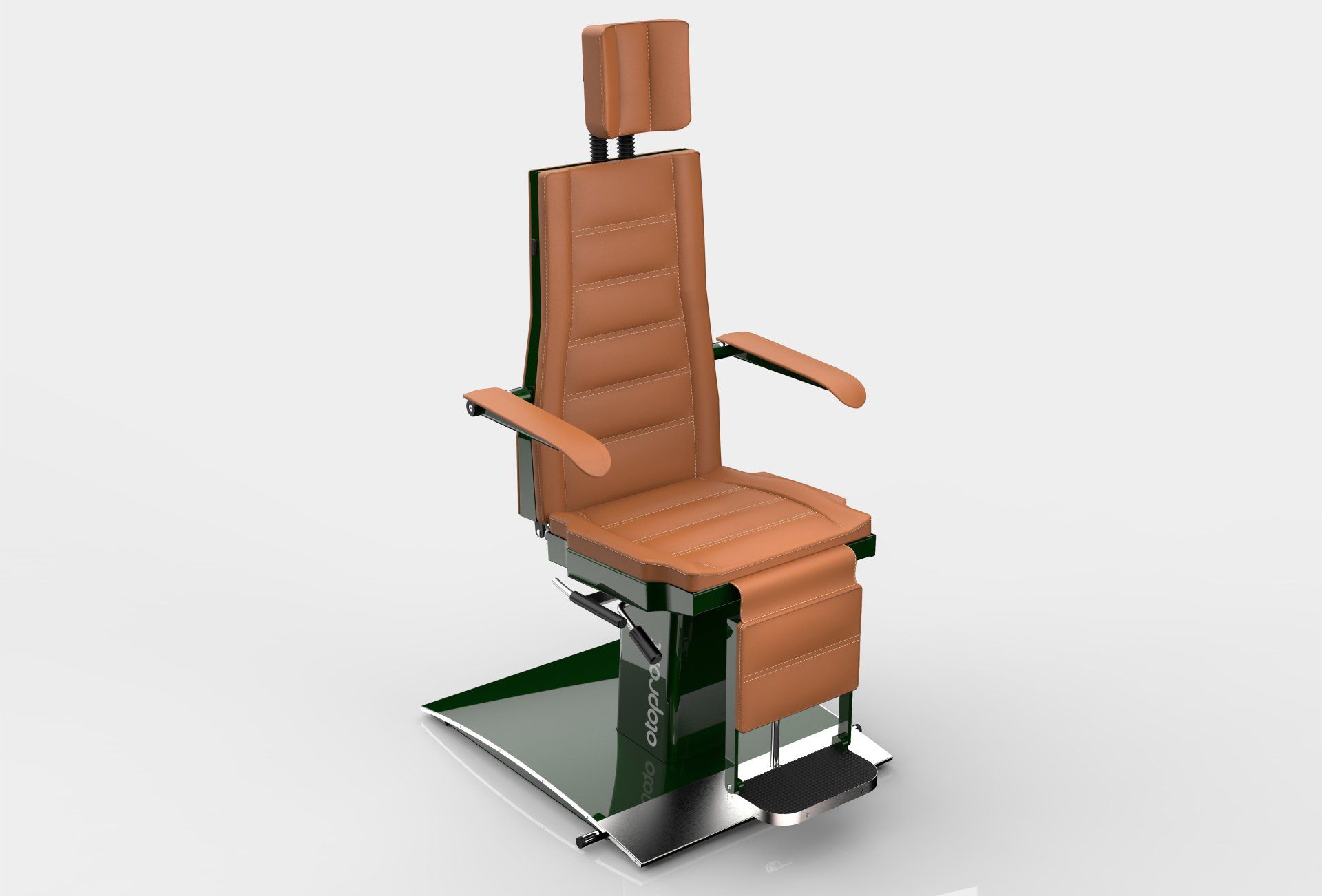

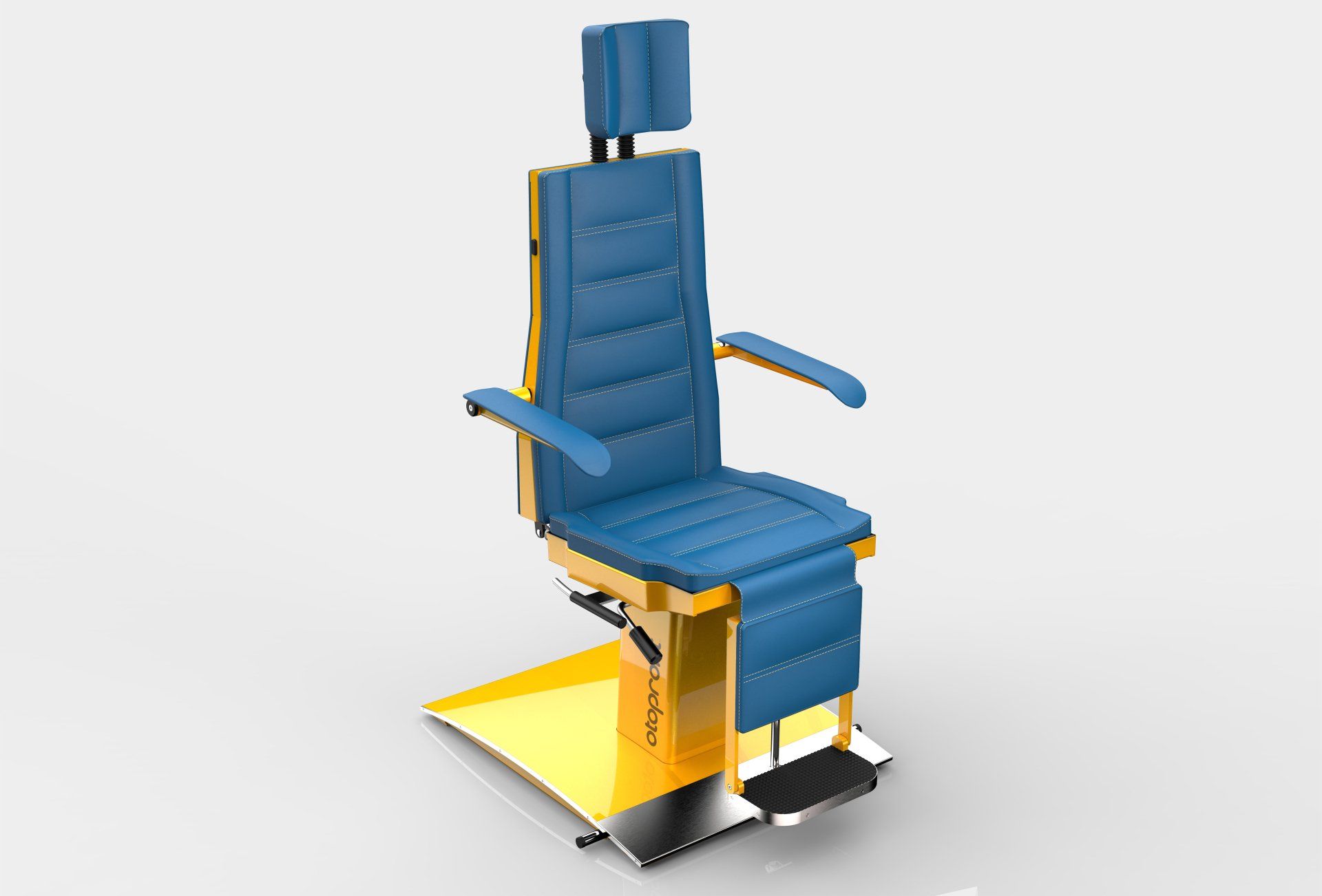

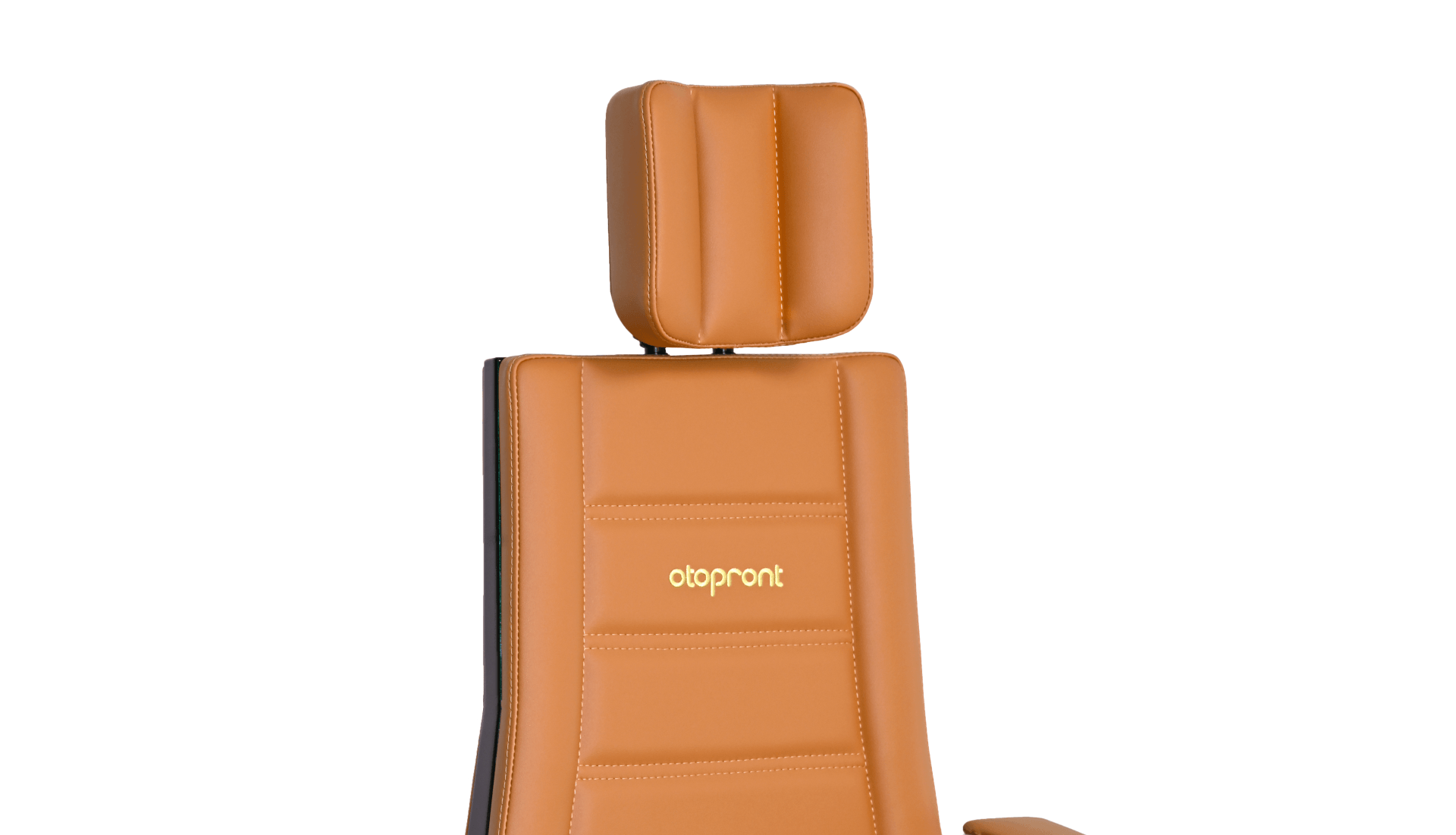

Decorative Stitching

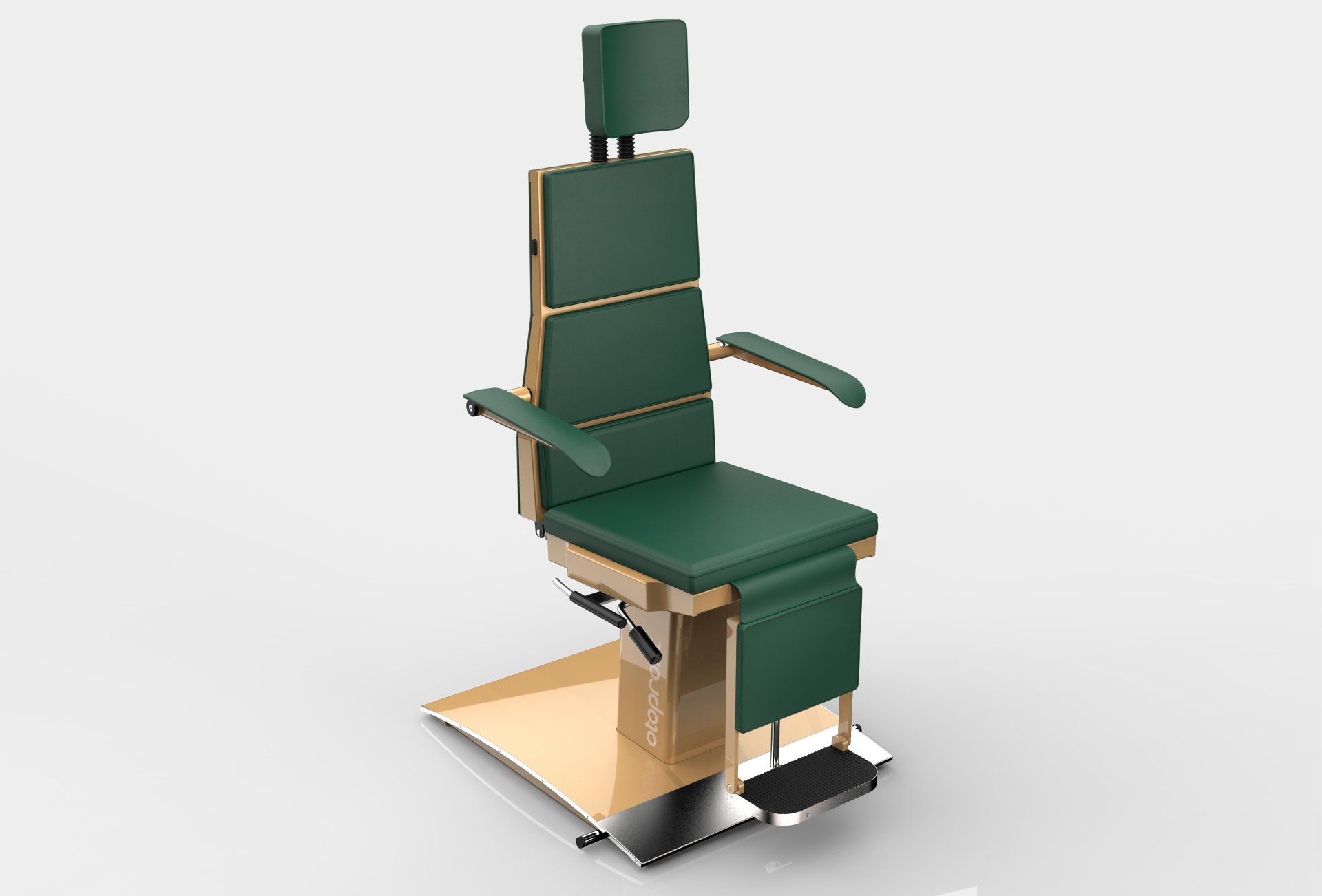

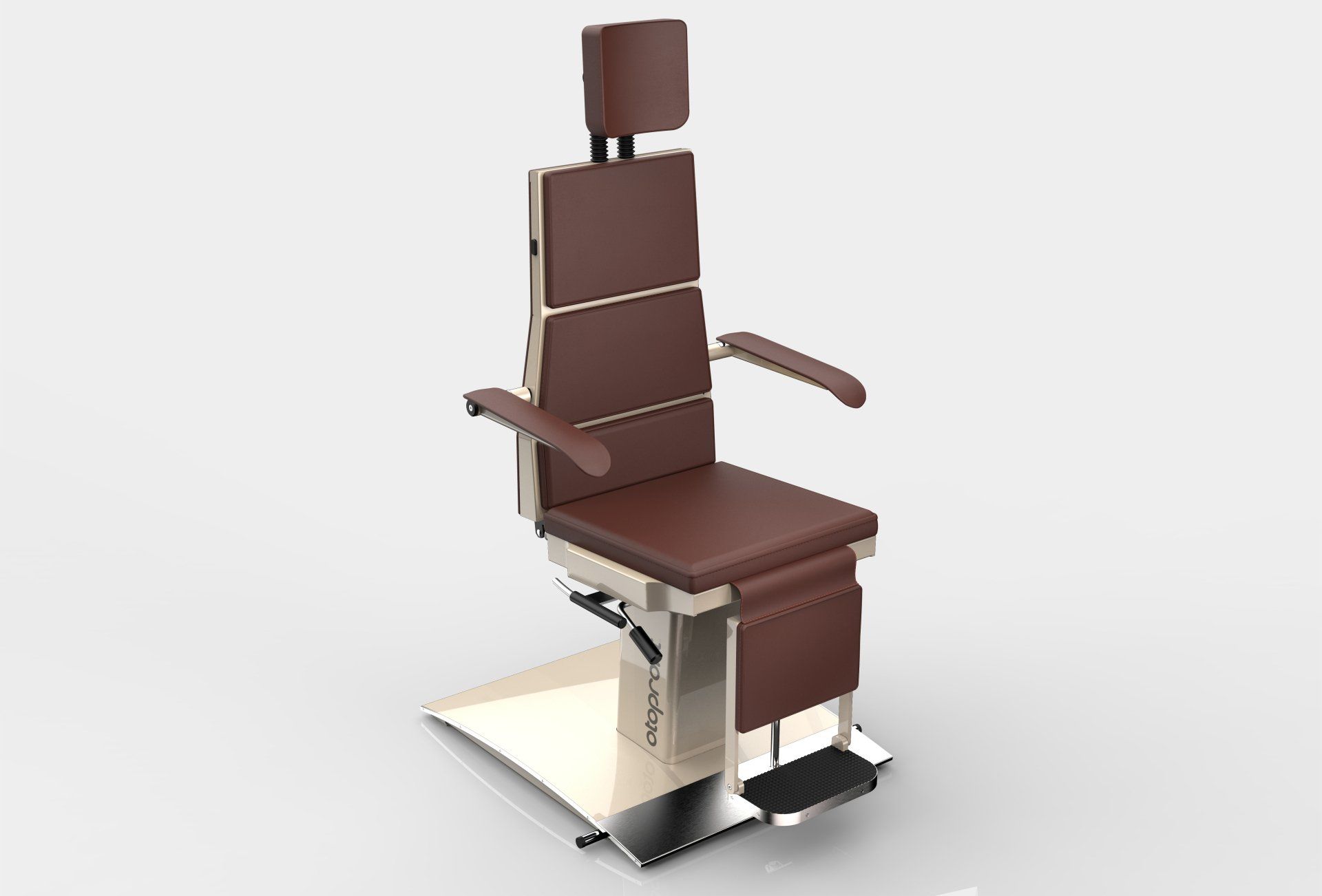

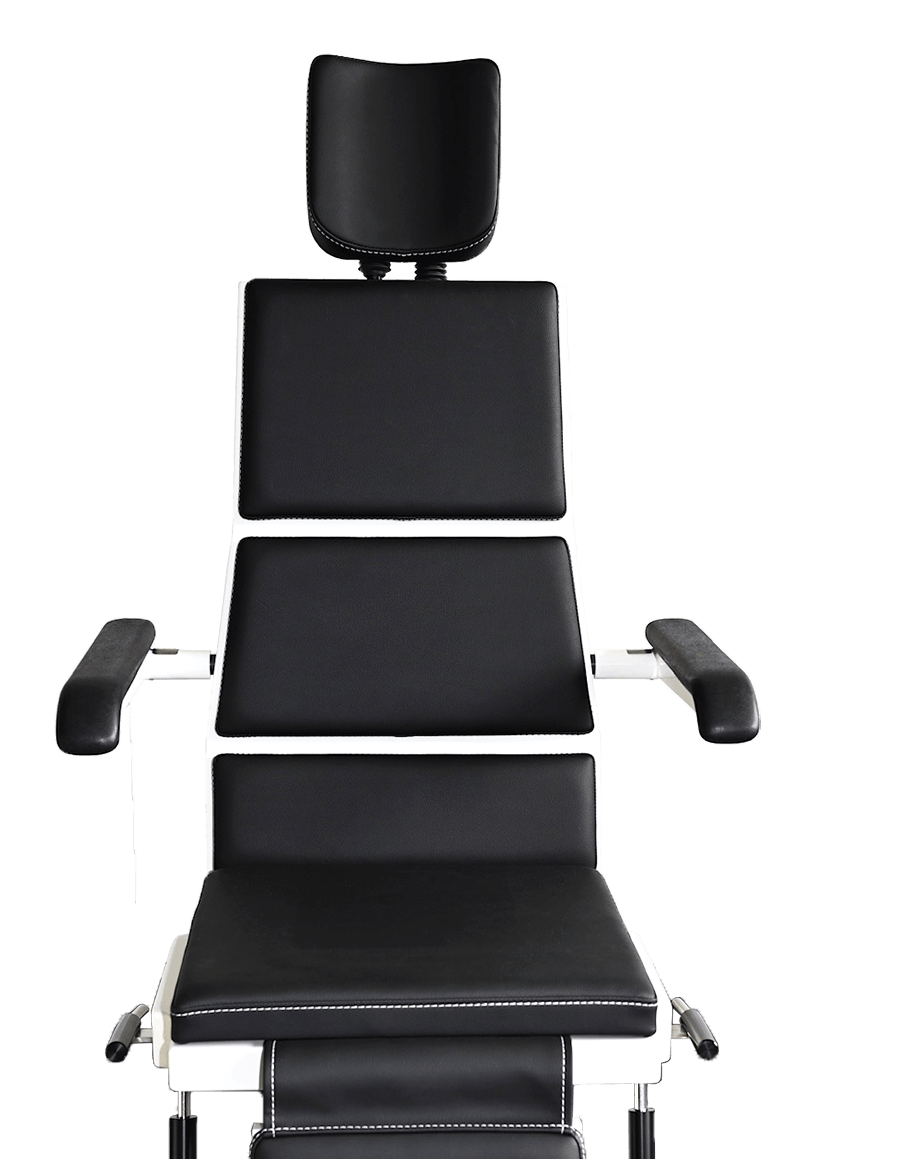

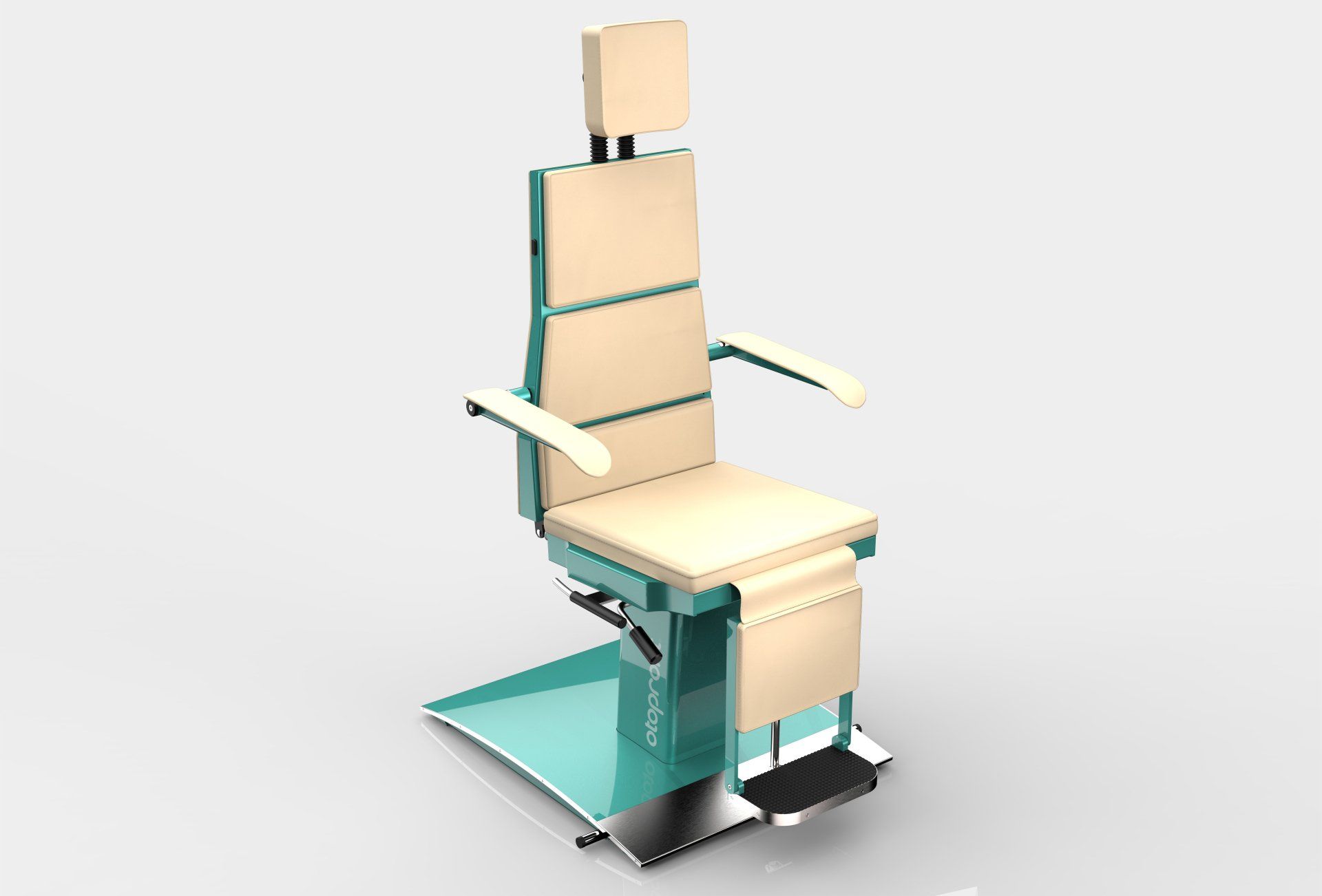

Soft Pad Cushion

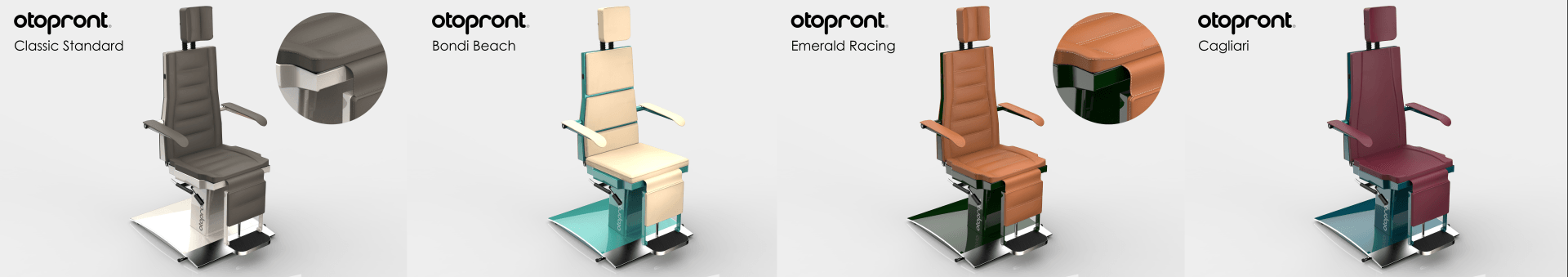

Free choice of colors for upholstery and varnish.

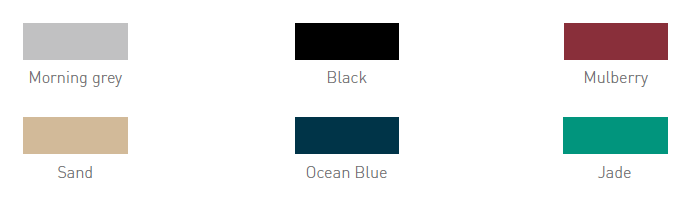

Extract from our color portfolio:

Upholstery colors:

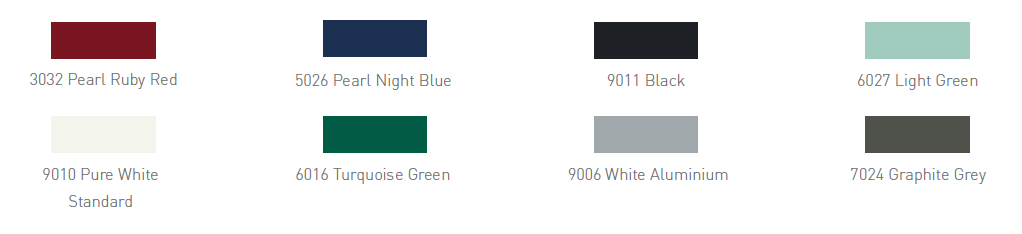

Lacquer colors:


ENT Examination and Treatment Chairs

Examination Chair SIT 4

  • Motor support, integrated foot switch
  • Stroke 11.81 inch; adjustable from 21.65 - 33.46 inch
  • Fully rotatable 360° with spring loaded ball stop machanism and lockable
  • Backrest can be tilted to horizontal position and minus to Trendelenburg position
  • Adjustable headrest and fixed footrest
  • Fully synthetic leather cover black
  • Adjustable armrest


Examination Chair SIT 4 Plus

  • Motor support, integrated foot switch
  • Stroke 11.81 inch; adjustable from 21.65 - 33.46 inch
  • Fully rotatable 360° with spring loaded ball stop mechanism and lockable
  • Backrest can be tilted to horizontal position and minus to Trendelenburg position
  • Simultaneous movement/adjustment of back- and footrest
  • Fully synthetic leather cover black


Examination Chair SIT 4 Plus E

  • Motor support, integrated foot switch
  • Stroke 11.81 inch; adjustable from 21.65 - 33.46 inch
  • Motor support for simultaneous movement of back- and footrest
  • Backrest can be tilted to horizontal position
  • Rotation 180° left and 180° right
  • Fully synthetic leather cover black

Examination Chair SIT 4 Plus ER

  • Motor support, integrated foot switch
  • Stroke 11.81 inch; adjustable from 21.65 - 33.46 inch
  • Motor support for simultaneous movement of back- and footrest
  • Backrest can be tilted to horizontal position
  • Electric rotation 180° left and 180° right via foot switch
  • Fully synthetic leather cover black


Options

  • Mobility on castors with electric lower and rise function (empty chair, not anchored)
  • Headrest adjustable in all directions
  • Motor support for adjustable headrest
  • Tilt protection
  • The thickness of the upholstery can be individually adjusted to customer requirements

SIT 4 with leg rest, simultaneous proven adjustment of backrest and surgical headrest, height adjustable switches on both sides
