PES PILOT HDpro

PES PILOT HDpro

The new standard in videoendoscopy


The PES PILOT HDpro videoendoscopy system aims to set new standards with regards to image quality, handling and functionality.


For the PES PILOT HDpro we created a completely new, very intuitive software, comparable to an app on your smartphone, in order to allow immediate use without training, for a very fast and convenient workflow during examination.


Thanks to numerous IT connections (e.g. DICOM conformance), the PES PILOT HDpro can easily be integrated into many IT-systems of the doctors offices.

Additionally we equipped the PES PILOT HDpro with our highly sophisticated Full-HD C-MOS camera chip, which delivers extremely sharp images of highest contrast.


The whole system corresponds to German quality standards and is built to last.


These features distinguish the PES PILOT HDpro creating a ground-breaking future-proof design to enable ENT professionals to work more efficiently.



Why PES PILOT HDpro?

Superior image quality (Full-HD video & picture)

Simple editing and comparison software for search function included

Ease of use - Intuitive and simple software

Complete patient database and data handling

High connectivity: DICOM, HL7, possible USB storage, printer

Frameless screen

Otopront Picture Enhancement (OPE) for higher contrasts

Add-ons: Lightsource or completely integrated

stroboscopy

Safety measures: Immediate data saving on internal storage

Future proof: New developments will be available

Quality Made in Germany

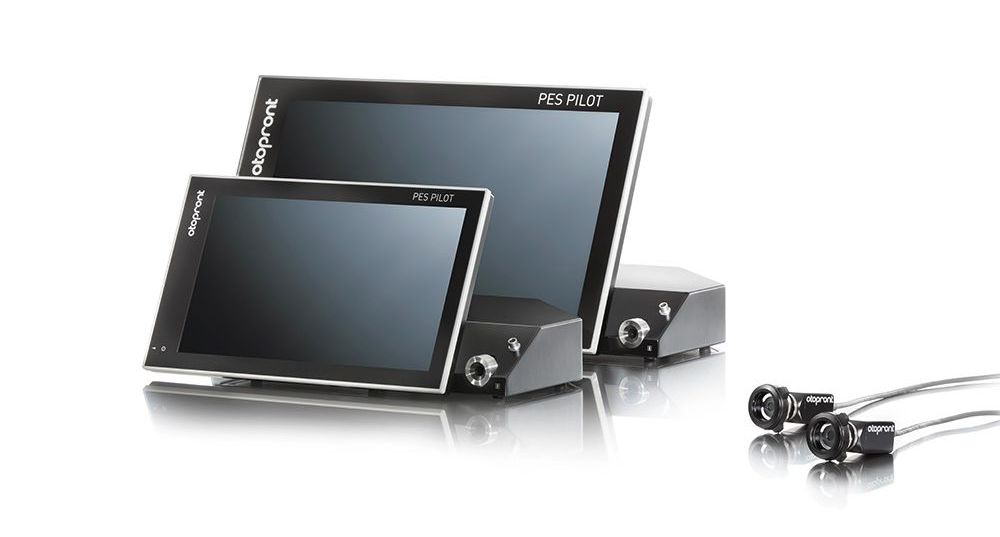

PES PILOT HDpro -

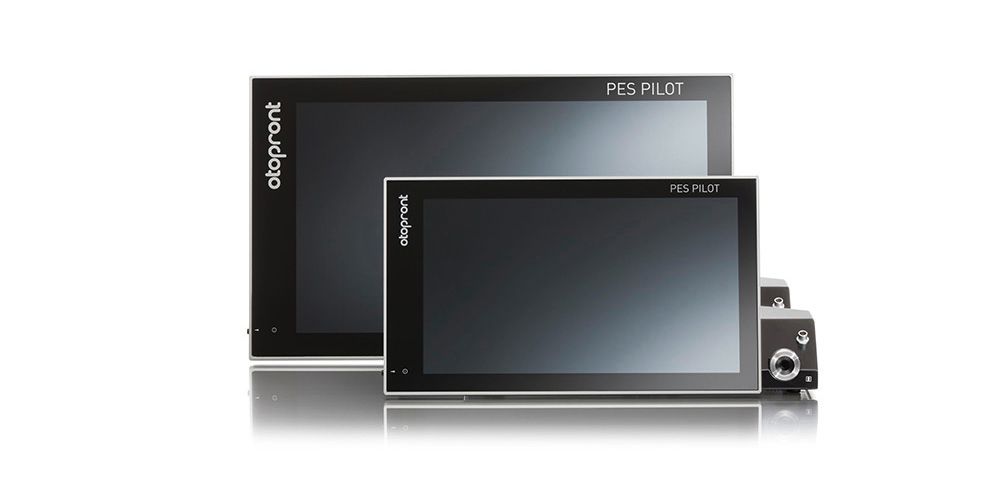

available with 15.6“ or 21“ touchscreen

SIT  4 Seitenansicht

Superior handling

With its front-mounted touchscreen and compact size the device can be incorporated directly into the working area (e.g. at the ENT unit). All functions can be operated conveniently by touchscreen, allowing the user to work as efficiently as possible.


Additional monitors can also be connected to the PILOT-screen. Placing a monitor behind the patients chair, simplifies the endoscopy process enabling the doctor to have a direct view of the screen.

The other way around, detailed results can be shown to the patient on an additional patient monitor. The patient monitor can be disabled at any time.


Findings can be tagged by touching the image directly

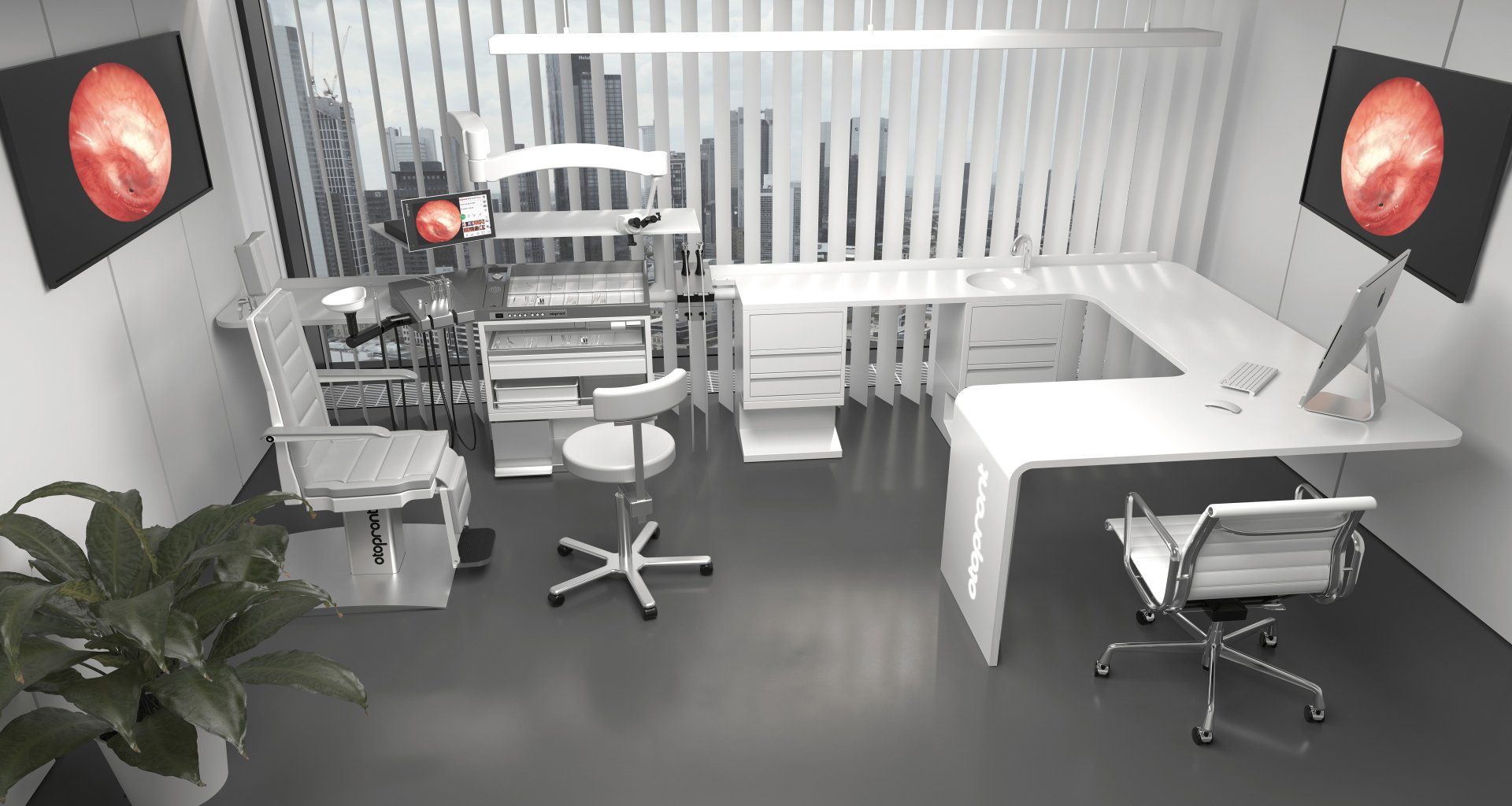

Workstation with centrally positioned PES PILOT HDpro with examination and patient screen


App-like software handling

Clearly structured and user friendly patient management.

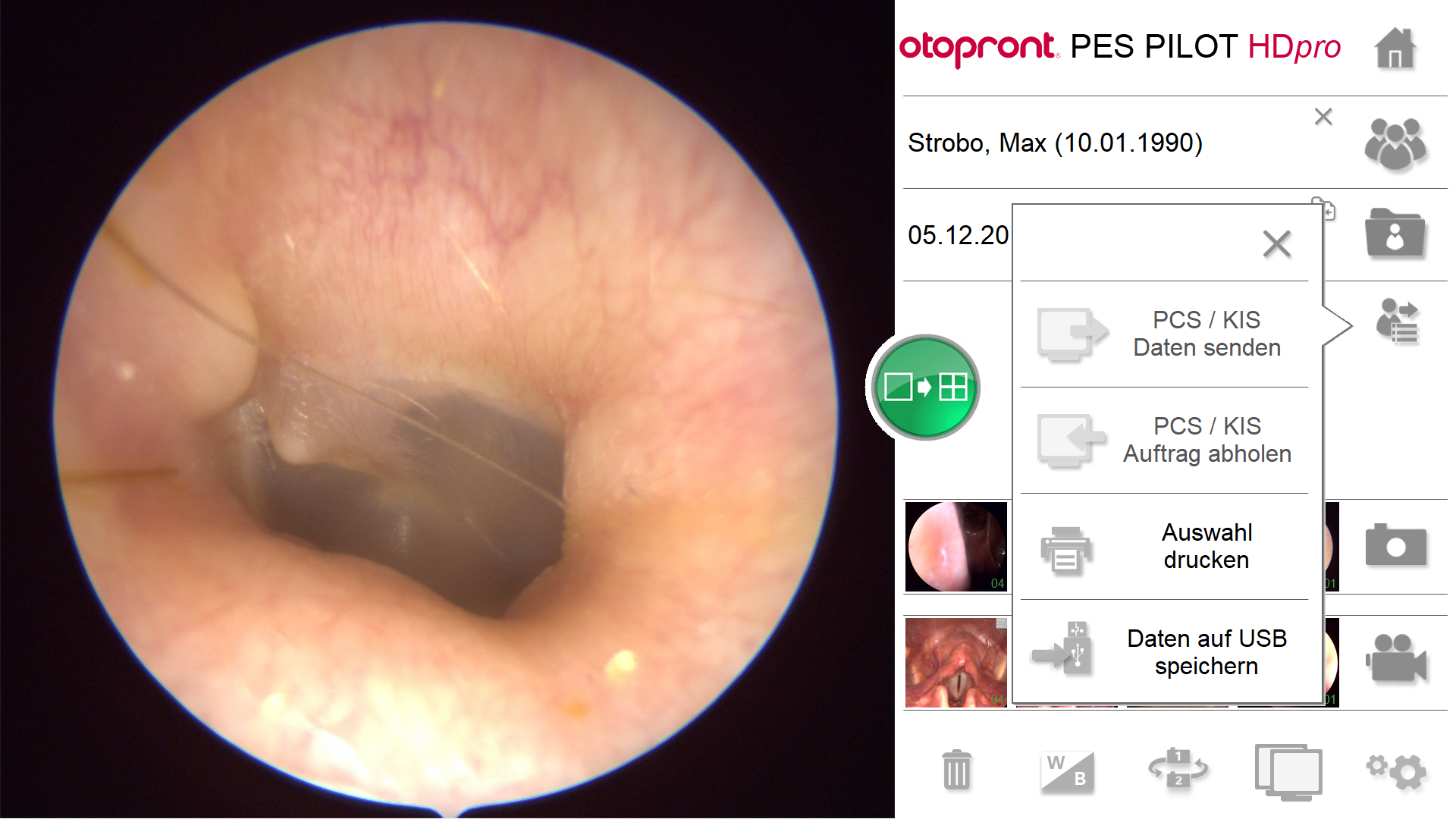

Patient data can be saved directly to the internal memory or to a USB-stick. In addition, data can be exchanged automatically with the practice IT-system or the HIS.


The device can be operated completely intuitively. Photos and videos can be made by using the foot switch or touchscreen.  Then the findings can be tagged directly on the PILOT-screen using the fingertip control. All the functions, such as selecting an image or zoom, are equal to operation on your smartphone.

The software facilitates the comparison of pictures of the patient for the diagnostic. The selection of the pictures is very intuitive and easy to handle.

Intuitive operation and navigation by touch or mouse

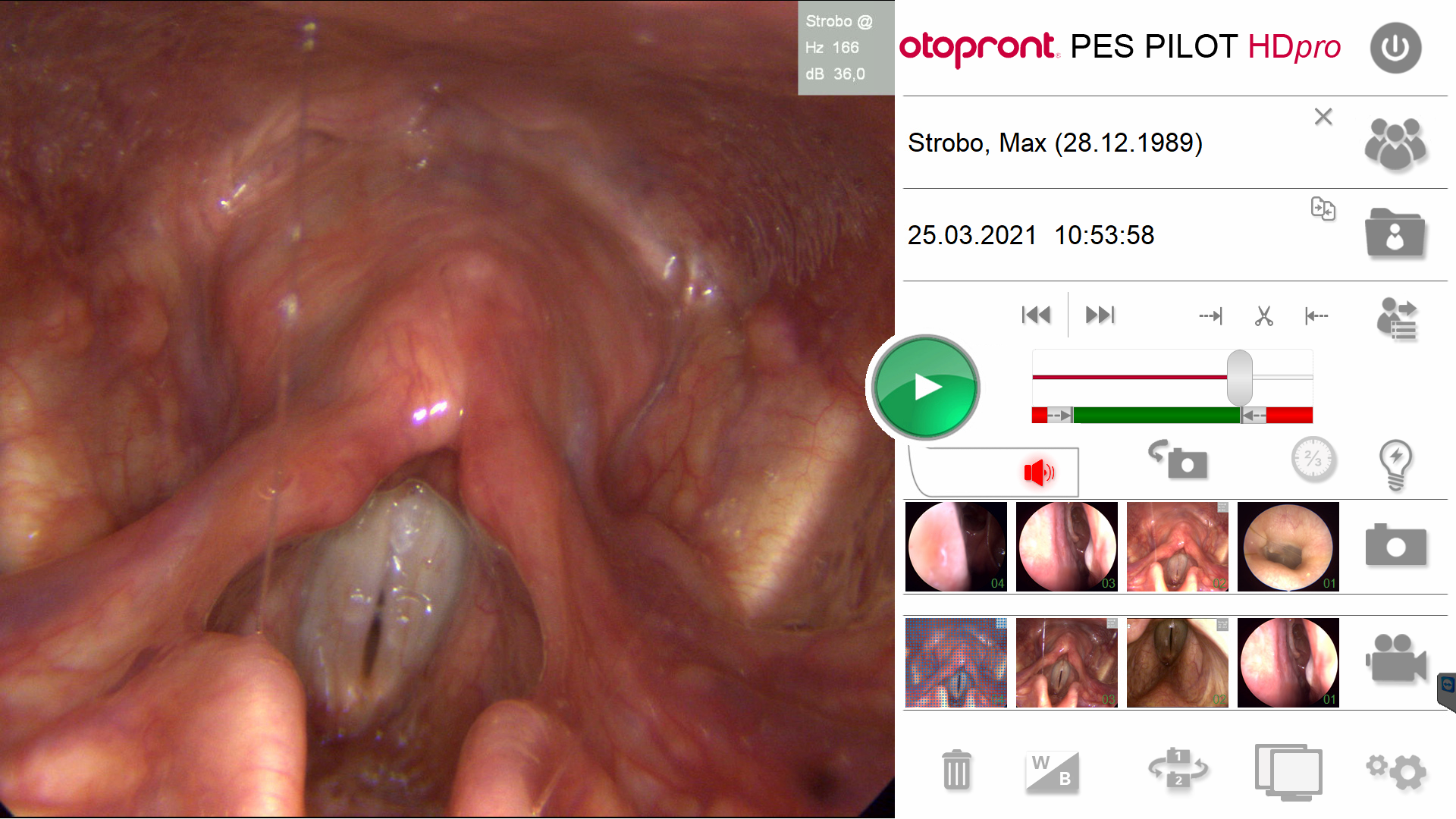

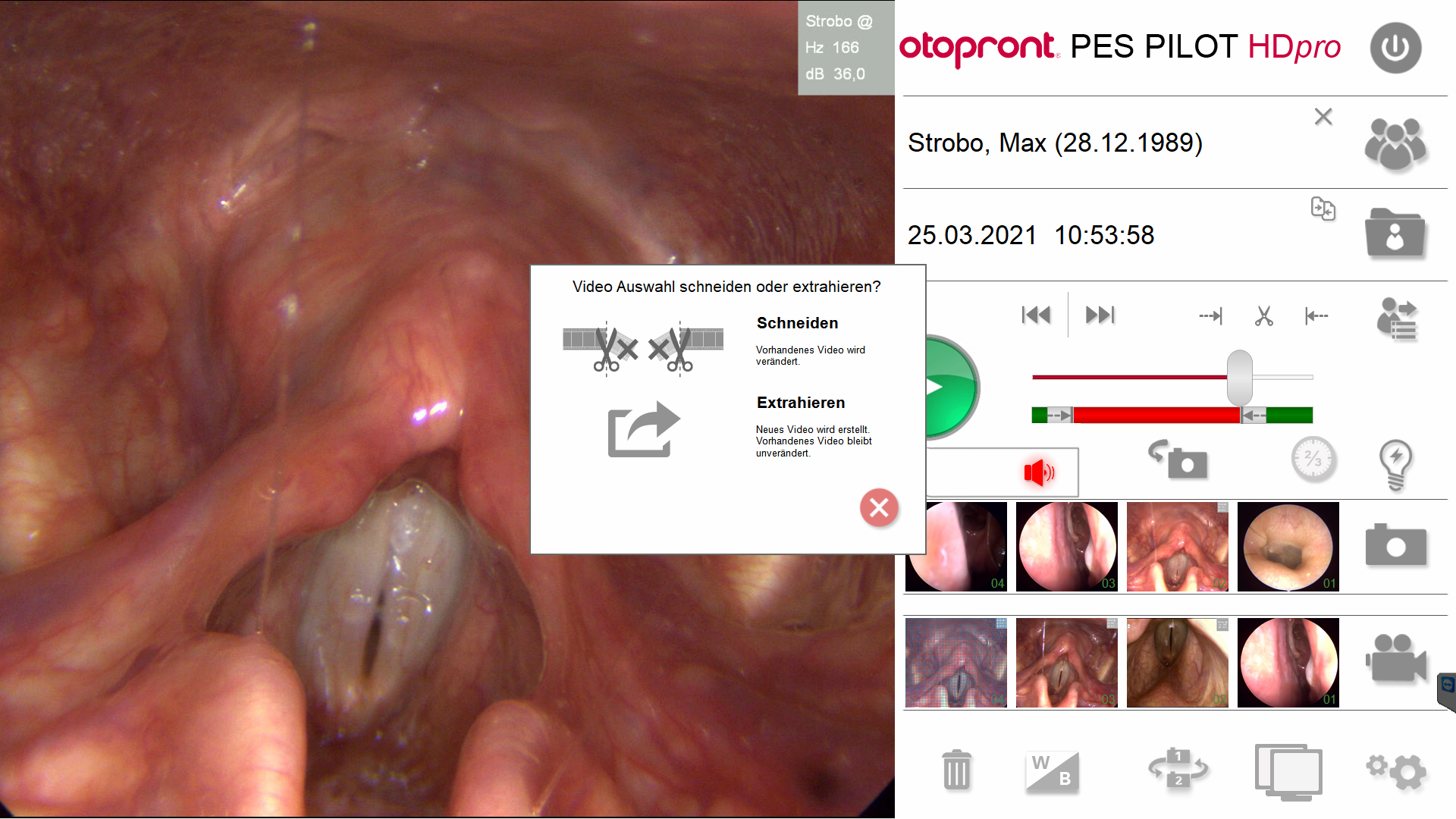

Camera system in examination mode with video editing

Intuitive comparison software


Complete network integration

  • Easy installation in practice computer (e.g. Medistar, Turbomed, Albis, tomedo etc.) via GDT protocol
  • Complete integration into HIS and PACS via standard interfaces (HL7, DICOM compliant) possible
  • DICOM Conformance Statement
  • Optionally transferring video data, communicating with worklists (e.g. DICOM video, DICOM worklists)
  • Automatic order recognition of the practice computer, alternatively at the push of a button

High performance stroboscopy (Option)

Compact, yet complete

  • Full-HD image and video capture (optionally 4K)
  • LED stroboscope light source
  • 15.6“ or 21” touchscreen and computer
  • Patient- and findingsmanagement
  • Fiberoptic Endoscopic Evaluation of Swallowing (FEES)
  • DICOM compliant
  • C-MOS chip technology

Crisp and sharp by precise, extremely short flashlight, high resolution by Full-HD

The highly efficient Otopront LED light source specially developed for stroboscopy allows very short exposure times, which together

with the Full-HD camera (optionally 4K) creates crisp and sharp images of the movements of the vocal cords.


Because of this, the PES PILOT HDpro stroboscope plays in the league of professional stroboscopy towers, but in a compact design.

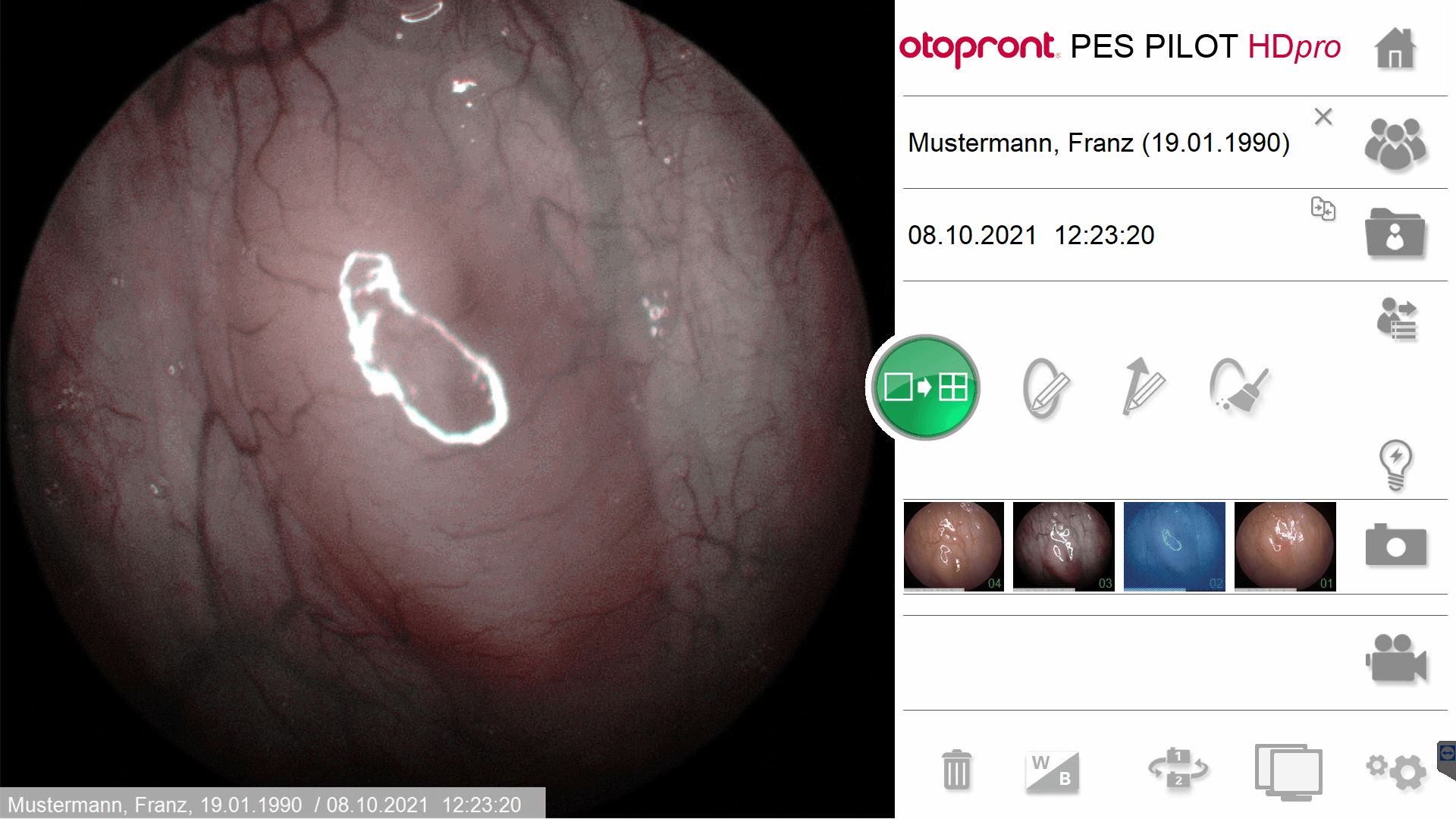

Otopront Picture Enhancement

Otopront Picture Enhancement (OPE) uses histological-physical findings to visualize tissue structures in greater detail through the differentiated use of blue and green spectral components.

The technique takes advantage of the effect of the different absorptivity of capillary vessels and surrounding tissue. This technology can be used to visually highlight conspicuous vessel and tissue patterns.

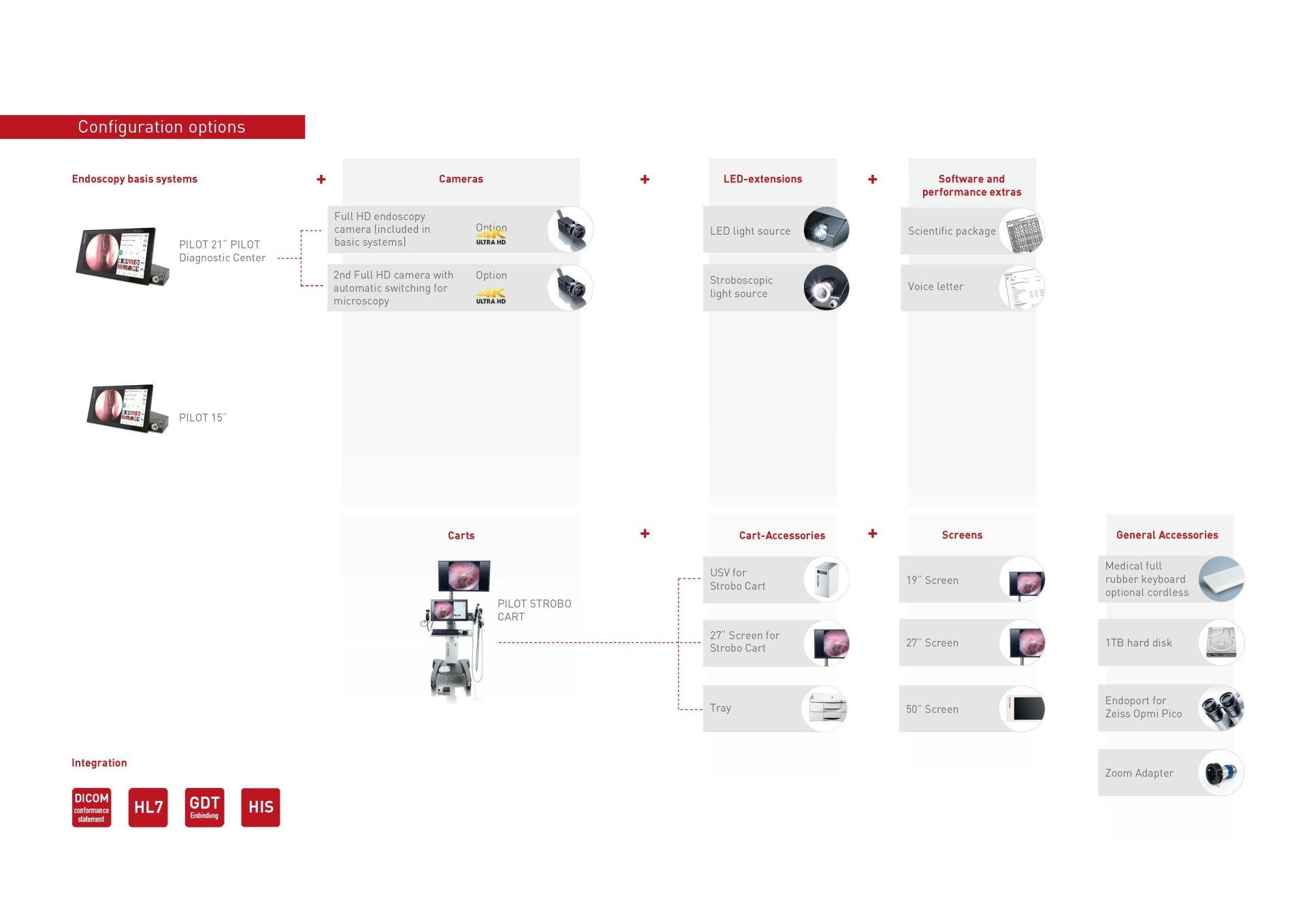

Features & Options

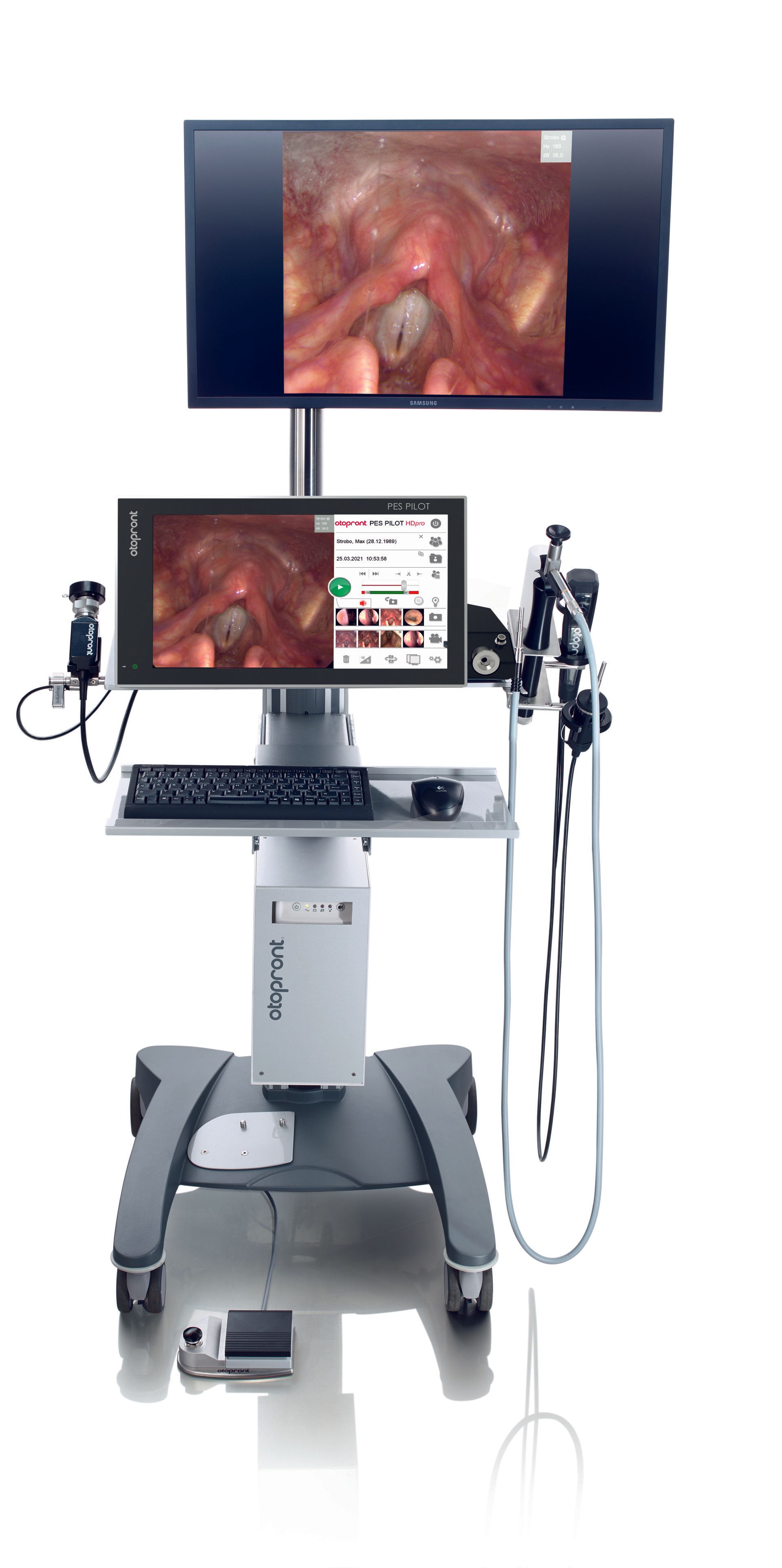

PES PILOT HDpro with Strobo Cart and USV

Camerahead

Foot switch

LED stroboscope light source


German Design Award Winner 2022

Statement of the jury:

»PES PILOT HDpro« is a state-of-the-art medical device for videoendoscopic examination, does not require any visible buttons and is operated in a contemporary and comfortable way via the front-mounted, swiveling touchscreen.
